(90.120.AD[06]) - OPERATOR SEAT

Запчасти Case IH PUMA1654 (90.120.AD[06]) - OPERATOR SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

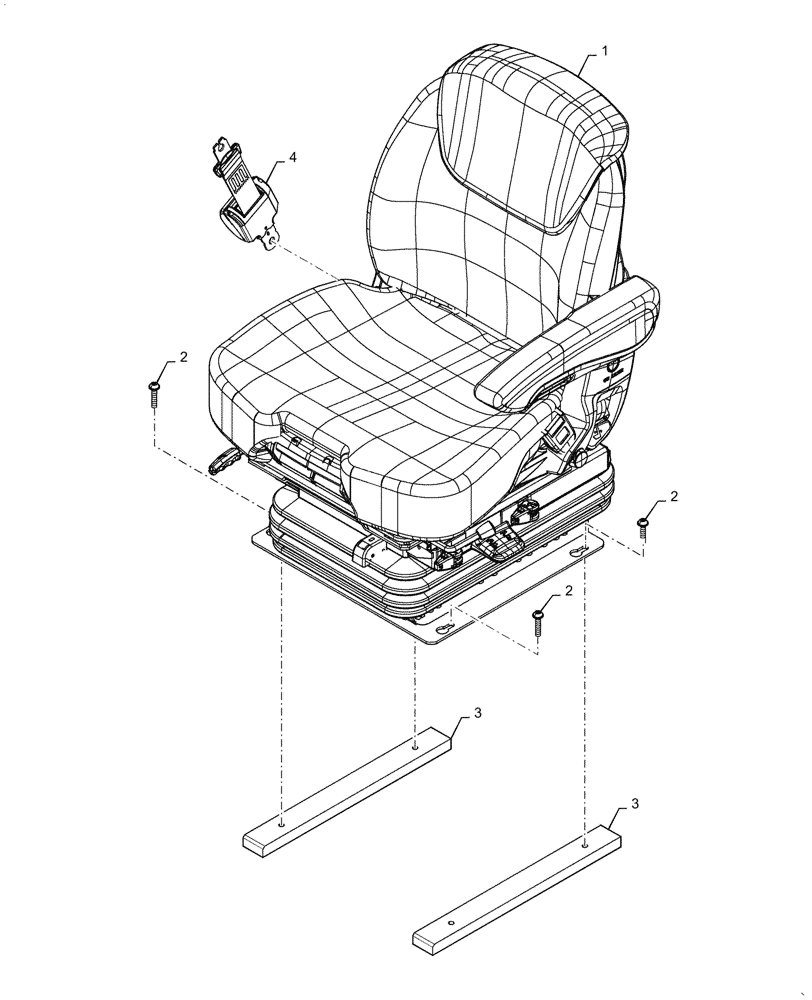

Схема запчастей Case IH PUMA1654 - (90.120.AD[06]) - OPERATOR SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
2
2
3
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87486984

SEAT

Assy Operator

1шт.

2

47875286

SCREW,Torx, Pan HD, M8 x 38mm, Cl 8.8

4шт.

3

47772307

SPACER,422mm L x 45mm W x 20mm Thk

Plate Std Seat Ptd

2шт.

4

84191197

SEAT BELT

1шт.

Выбрано товаров: 4
