Запчасти Case IH PUMA1654 (90.118.BM[02]) - 2 X TELESCOPIC EXTERNAL REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

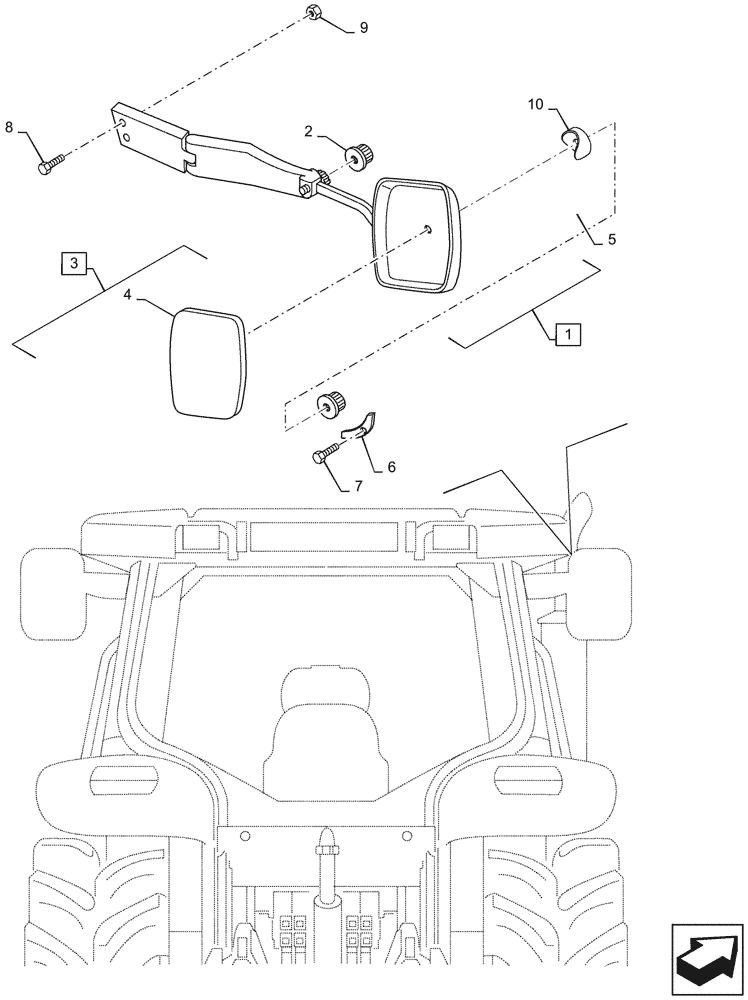

Схема запчастей Case IH PUMA1654 - (90.118.BM[02]) - 2 X TELESCOPIC EXTERNAL REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
8
4
7
6
1
2
10
3
9

Артикул

Название

Примечание

Количество

1

84398575

MIRROR ARM

RH Telescopic

1шт.

1

87314381

MIRROR ARM

Telescopic - LH, Incl 2

1шт.

2

87365131

KNOB

Arm Clamping

1шт.

3

87339177

MIRROR ASSY.

incl 4 - 7

2шт.

4

82035218

MIRROR,300mm x 200mm

Lens

1шт.

5

82016257

KNOB

Rear View Outside Mirror Adjusting

1шт.

6

87531094

BRACKET

Manual Mirror Head

4шт.

7

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

8

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

Prev Torque

4шт.

10

82035908

WASHER

Saddle Mirror Arm

2шт.

11

82039492

GROMMET,6mm ID x 20mm OD, Rubber

Blanking

2шт.

Выбрано товаров: 12
