Запчасти Case IH PUMA1654 (90.116.AC[01]) - REAR FENDER GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

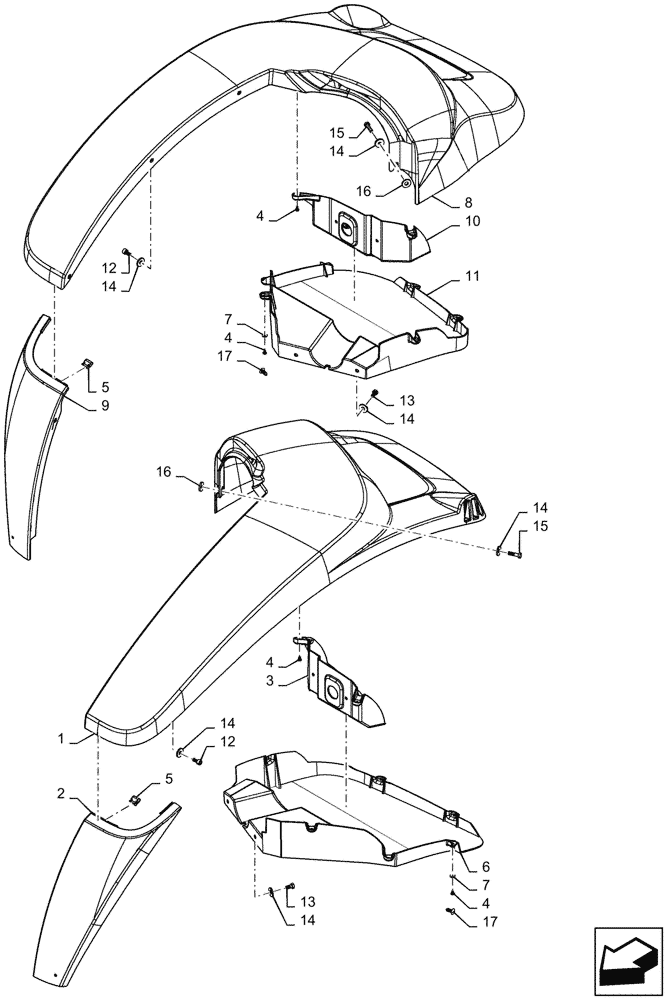

Схема запчастей Case IH PUMA1654 - (90.116.AC[01]) - REAR FENDER GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
17
10
12
15
11
15
4
13
1
2
14
14
4
9
4
14
14
6
13
17
4
3
5
16
7
5
12
14
8
14
16

Артикул

Название

Примечание

Количество

1

87554853

REAR FENDER

Case - LH - Red

1шт.

2

82038501

REAR FENDER

Panel LH Infill

1шт.

3

84511198

COVER

Trim Fender Lamp LH

1шт.

4

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

20шт.

5

82010838

SPRING CLIP,0.5mm Thk

6шт.

6

47550809

SUPPORT

Fender LH

1шт.

7

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

12шт.

8

87554854

REAR FENDER

Case - RH - Red

1шт.

9

82038500

REAR FENDER

Panel RH Infill

1шт.

10

84511195

COVER

Trim Fender Lamp RH

1шт.

11

47550810

SUPPORT

Fender RH

1шт.

12

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

8шт.

13

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

14

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

14шт.

15

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Bolt

2шт.

16

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

2шт.

17

81870039

FASTENER,M8 x 1.5 x 22mm

4шт.

Выбрано товаров: 17
