Запчасти Case IH PUMA1654 (90.110.AH[01]) - INSTRUMENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

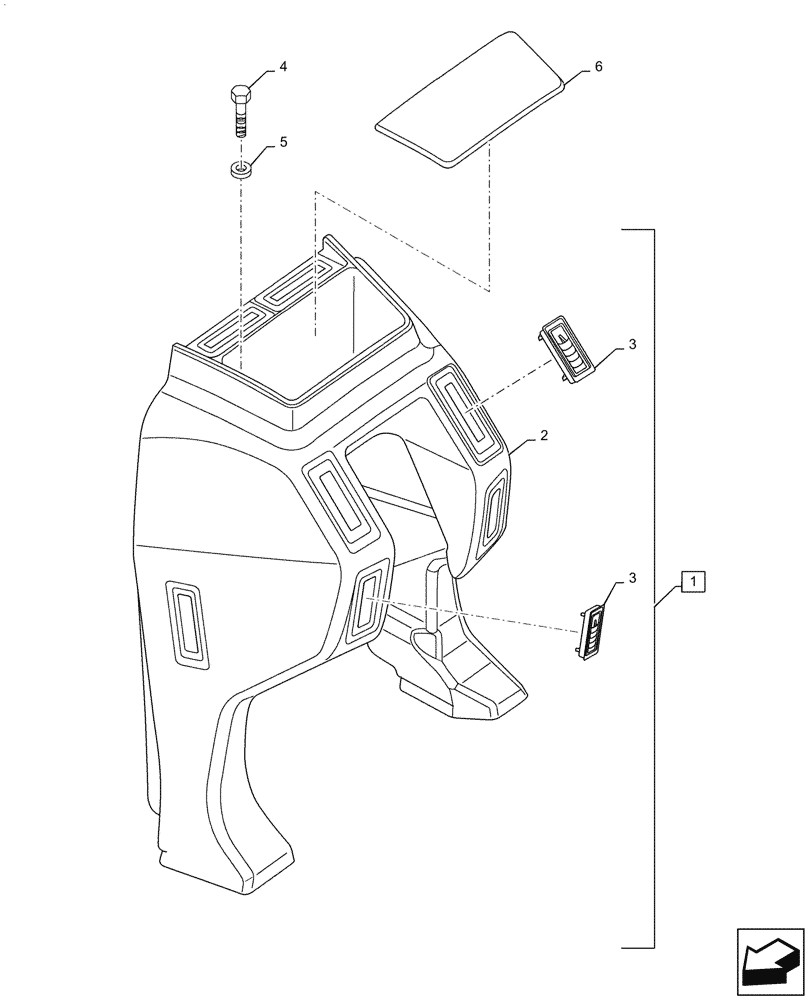

Схема запчастей Case IH PUMA1654 - (90.110.AH[01]) - INSTRUMENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
3
4
1
6
5
2

Артикул

Название

Примечание

Количество

1

87525680

CONSOLE

Panel And Vent Assy - Rear Hood, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Panel - Rear Hood-Front

1шт.

3

363882A1

VENT

Louver Assy

8шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

87518104

MAT

Storage Bin

1шт.

Выбрано товаров: 6
