Запчасти Case IH PUMA1654 (90.108.AC[06]) - INFORMATIONAL DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

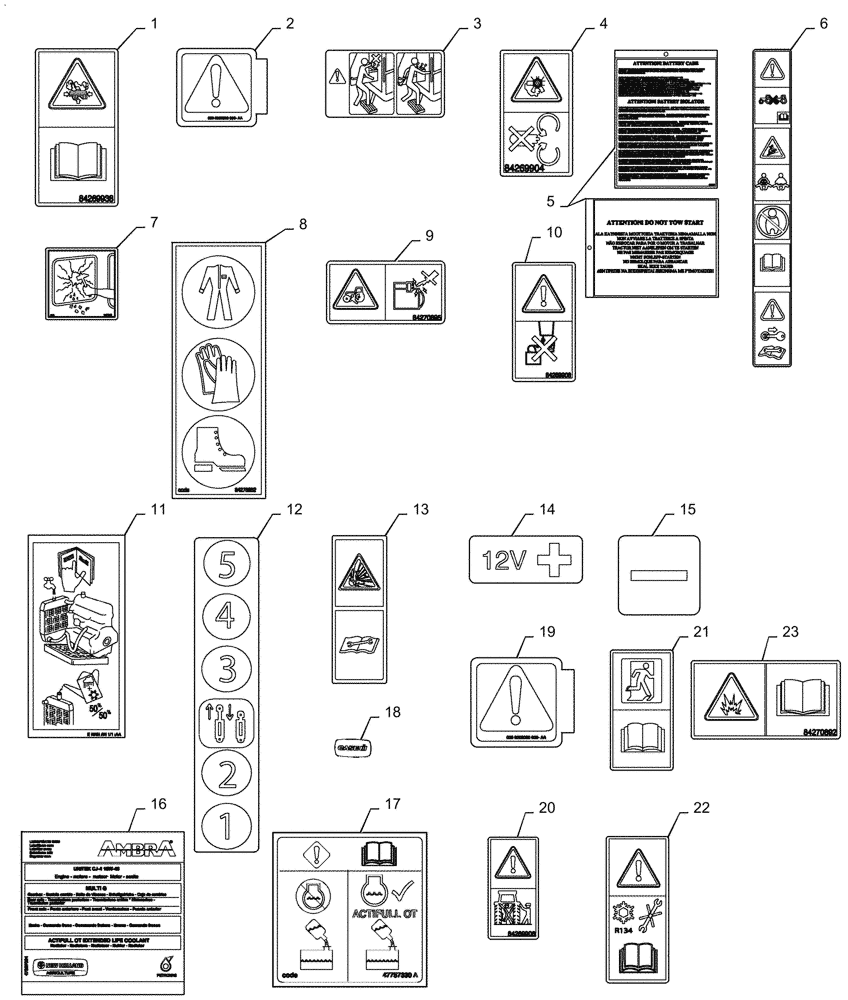

Схема запчастей Case IH PUMA1654 - (90.108.AC[06]) - INFORMATIONAL DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
22
18
8
12
19
16
2
17
1
6
5
13
7
4
20
14
9
23
21
11
3
10
15

Артикул

Название

Примечание

Количество

1

84269938

DECAL

High Pressure Hazard

2шт.

2

87556492

DECAL

Fuel Shut Off

1шт.

3

81871702

DECAL

Vehicle Operating Warning Instruction

1шт.

4

84269904

DECAL

Hand Entangle Hazard

2шт.

5

87718022

WARNING DECAL

Label Battery Care And Dual Power

1шт.

6

47871314

WARNING DECAL

1шт.

7

84276198

DECAL

Emergency Break Glass

1шт.

8

84275352

DECAL

Protective Clothing

1шт.

9

84270895

DECAL

Jump Start Hazard

1шт.

10

84269908

DECAL

Warning Operator

1шт.

11

82015448

DECAL

Radiator Coolant

1шт.

12

84535717

DECAL

Hydraulic Remote Control Valve

1шт.

13

82029751

DECAL

Hydraulic

4шт.

14

87524728

DECAL

Jump Start Terminal Positive

1шт.

15

87524725

DECAL

Jump Start Terminal

1шт.

16

47997095

DECAL

Lubricants

1шт.

17

47757330

DECAL,50mm x 50mm H

Oat Coolant

1шт.

18

87679098

DECAL,37mm x 70mm

Oil Filter

3шт.

19

87672091

DECAL

Air Conditioning

1шт.

20

84269906

DECAL

Warning External Control

2шт.

21

87390270

DECAL

Escape Door Warning

1шт.

22

47666863

DECAL

Warning Air

1шт.

23

84270892

DECAL

Explosion Hazard

1шт.

Выбрано товаров: 23
