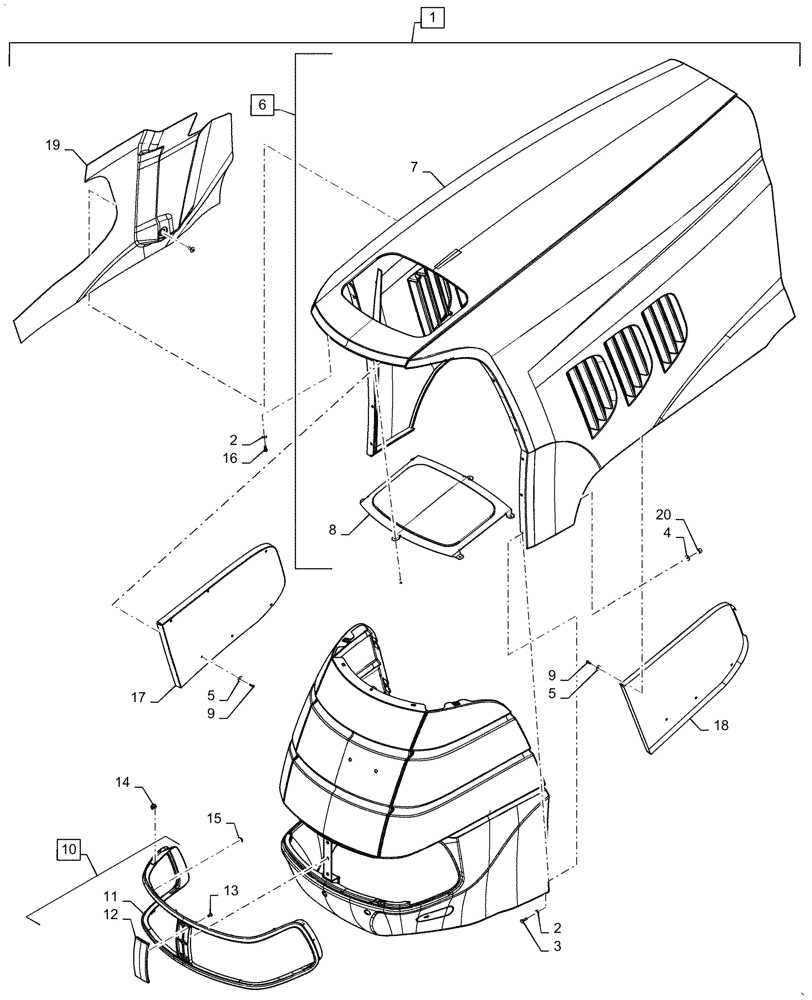

Запчасти Case IH PUMA1654 (90.100.BB[02]) - HOOD FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NS

NOT SERVICED

Panel Assy Hood

1шт.

2

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

15шт.

3

120100

BOLT,M6 x 20mm, Cl 8.8

12шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

15шт.

5

14446821

WASHER,3.6mm ID x 10mm OD x 0.6mm Thk

12шт.

6

47446387

ENGINE HOOD

Panel Assy Hood Incl - 6 -7

1шт.

7

NSS

NOT SOLD SEPARAT

Panel Assy Hood Painted

1шт.

8

87727184

GRILLE

Hood Panel

1шт.

9

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

18шт.

10

87734283

GRILLE

Bezel Assy Radiator Incl 11 - 13

1шт.

11

87633243

HOLDER

Bezel Lamp Support Assy

1шт.

12

87734282

RADIATOR GRILLE

Trim Assy Radiator

1шт.

13

16082104

SELF-TAP SCREW,Spcl, Pozidriv Pan Hd, M3 x 2 x 8mm, HI-LO

4шт.

14

87536288

CLIP

4шт.

15

14227674

SPRING NUT,B Style, M4 x 14mm L x 0.4mm Thk

Push-On Style B

4шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

17

87631968

SIEVE

Grille Hood Panel - RH

1шт.

18

87631969

ENGINE HOOD PANEL

Grille - LH

1шт.

19

47618012

INSULATION

Hood Panel

1шт.

20

12574211

NUT,M6 x 1, Cl 8

Prev Torque

15шт.
