Запчасти Case IH PUMA1654 (90.100.BB[01]) - HOOD FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

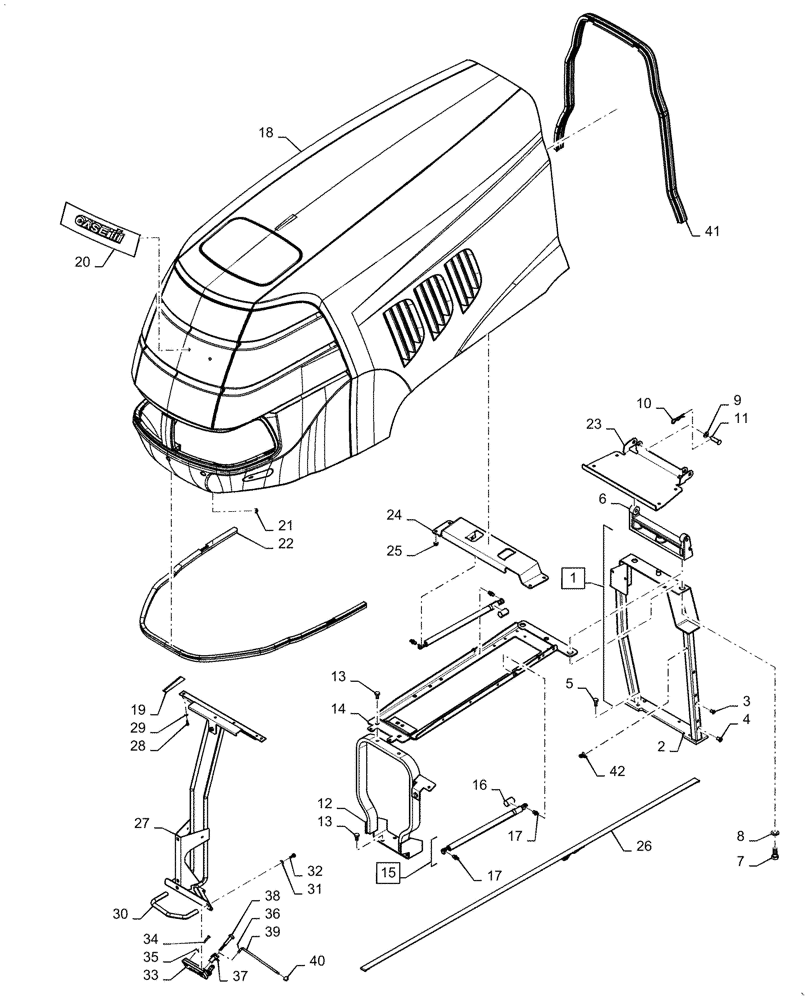

Схема запчастей Case IH PUMA1654 - (90.100.BB[01]) - HOOD FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
37
13
11
25
27
26
38
30
19
3
14
20
39
9
7
32
24
17
29
28
2
13
15
16
18
42
4
35
22
12
36
23
41
8
31
21
1
34
5
17
6
10
33
40

Артикул

Название

Примечание

Количество

1

47982927

SUPPORT

Support Hood - Rear Assy, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Support Hood - Rear Painted

1шт.

3

15628511

RIVET,Flat, M6 OD x 16mm L

Nut

4шт.

4

15629111

RIVET,Flat, M8 OD x 17.5mm L

Nut

2шт.

5

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

Bolt

4шт.

6

87353681

HINGE

1шт.

7

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

2шт.

8

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

9

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

10

82026318

COTTER PIN,1/8 x 2 5/16

2шт.

11

87353680

PIN,12.2mm OD x 44mm L

Hinge

2шт.

12

87727191

SUPPORT

Assy - Hood - Front

1шт.

13

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

6шт.

14

84468876

SUPPORT

Assy Air Cleaner

1шт.

15

82036570

GAS STRUT

Hood Lift, Incl 16

2шт.

16

82019394

SEAL

Hood Lift Cylinder-Dust

1шт.

17

83952214

BALL STUD,M8 x 29.5mm OAL

4шт.

18

NS

NOT SERVICED

Panel Assy Hood

1шт.

19

44995044

GUIDE

Trim-Hood Sight

1шт.

20

87716230

EMBLEM

Case

1шт.

21

86625060

PUSH-ON NUT,Self, Threading, 1/4"

1/4 Self Threading

2шт.

22

84156636

RUBBER STRIP

Seal Hood Front Opening

1шт.

23

84153356

PLATE

Hood Support Hinge

1шт.

24

87612108

PANEL

Plate - Hood Front (Ptd)

1шт.

25

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

10шт.

26

84284508

SECURING STRAP

1шт.

27

84150680

SUPPORT

Assy Hood Latch

1шт.

28

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

29

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

30

84151073

HANDLE

Radiator Grille

1шт.

31

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

32

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

33

87729381

LATCH

Lock

1шт.

34

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

Bolt

3шт.

35

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

3шт.

36

10734401

COTTER PIN,M2 x 22

1шт.

37

84291127

PIVOT

Assy Latch Hood Lock

1шт.

38

87301835

PIN,10mm OD x 76.6mm L

Bolt Hood Latch

1шт.

39

84291129

ROD,M5

Grille Radiator

1шт.

40

84287785

BALL,5mm ID x 16mm OD

1шт.

41

47887540

SEAL

Hood Panel

1шт.

42

82033028

CABLE TIE,170mm L

With Fir Tree

1шт.

Выбрано товаров: 42
