(55.518.AS[01]) - FRONT WINDSHIELD WIPER PUMP

Запчасти Case IH PUMA1654 (55.518.AS[01]) - FRONT WINDSHIELD WIPER PUMP (55) - ELECTRICAL SYSTEMS

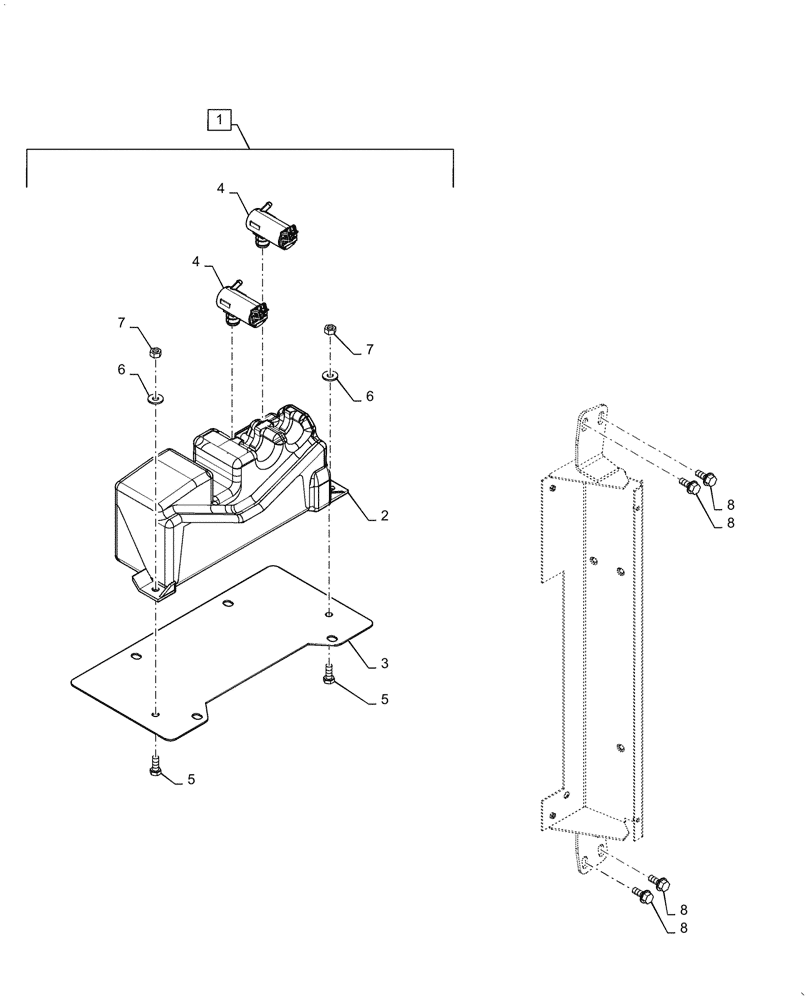

Схема запчастей Case IH PUMA1654 - (55.518.AS[01]) - FRONT WINDSHIELD WIPER PUMP (55) - ELECTRICAL SYSTEMS
8
1
4
7
8
8
6
4
2
7
5
6
3
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47889182

RESERVOIR, WINDSHIEL

Wash Twin Pumps, Incl 2 - 7

1шт.

2

47845516

RESERVOIR, WINDSHIEL

Wash

1шт.

3

87638111

PLATE

Mounting Washer Bottle

1шт.

4

84420264

PUMP,12V

Washer 12V

2шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

6

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

7

9706690

NUT,M8 x 1.25, Cl 8

2шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
