(55.518.AP[01]) - FRONT WINDSHIELD WIPER TANK

Запчасти Case IH PUMA1654 (55.518.AP[01]) - FRONT WINDSHIELD WIPER TANK (55) - ELECTRICAL SYSTEMS

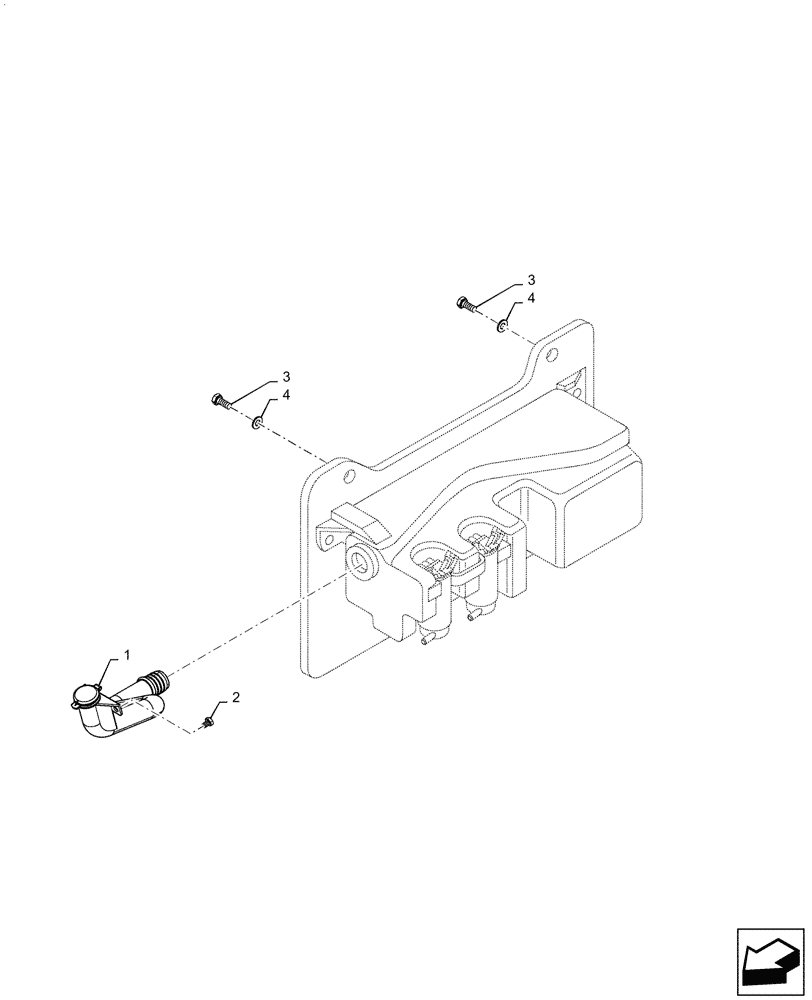

Схема запчастей Case IH PUMA1654 - (55.518.AP[01]) - FRONT WINDSHIELD WIPER TANK (55) - ELECTRICAL SYSTEMS
3
2
4
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82030997

TUBE

Filler Washer Bottle

1шт.

2

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

3шт.

3

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.
