(55.512.BY[03]) - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT

Запчасти Case IH PUMA1654 (55.512.BY[03]) - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

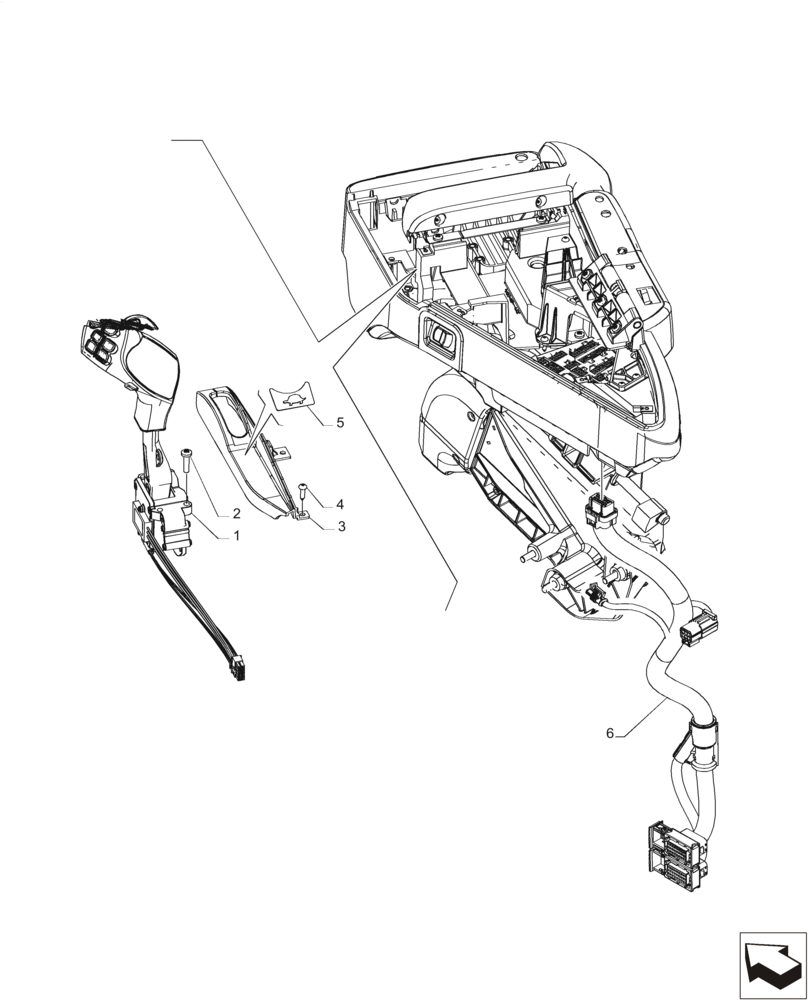

Схема запчастей Case IH PUMA1654 - (55.512.BY[03]) - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS
2
4
5
6
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84596604

JOYSTICK

Multifunctional Handle, Powershift

1шт.

2

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

4шт.

3

84122981

BEZEL

Throttle, Powershift

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8 x 19

2шт.

5

84145169

DECAL

1шт.

6

84195894

WIRE HARNESS

1шт.

Выбрано товаров: 6
