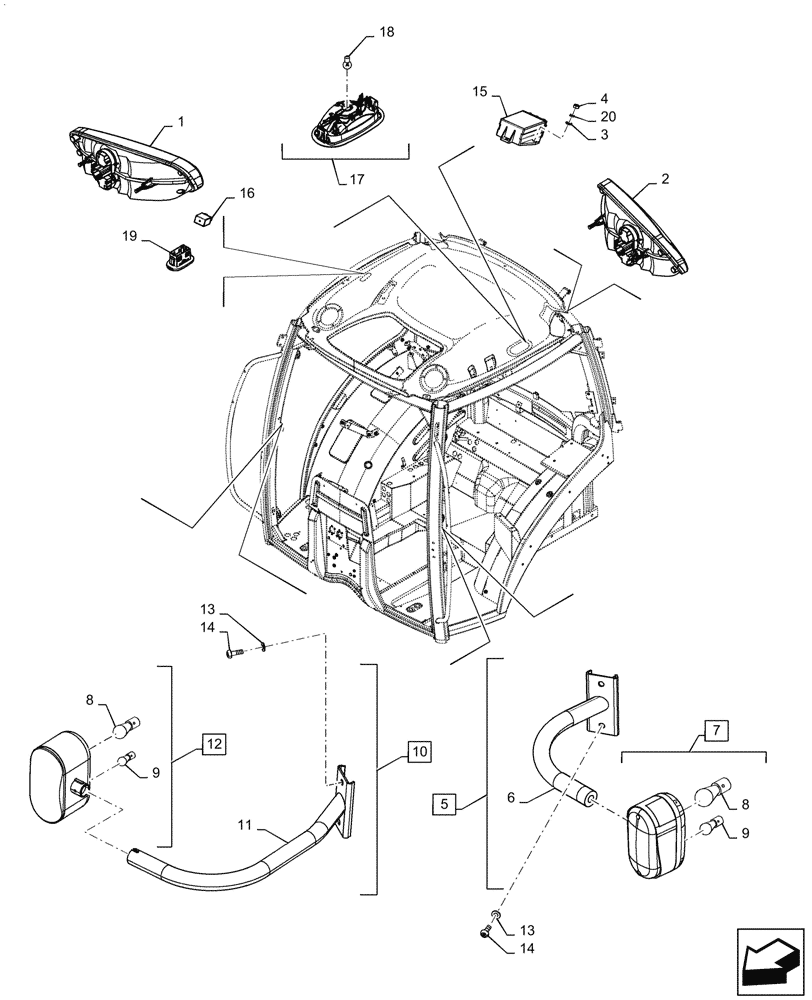

Запчасти Case IH PUMA1654 (55.404.CA[01]) - INDICATOR LIGHT (55) - ELECTRICAL SYSTEMS

1

87536432

TAIL LAMP,12V, 21W, Amber/Red

Lamp Assy - Rear Combination RH - Narrow Fender

1шт.

2

87536433

TAIL LAMP,12V, 21W, Amber/Red

Lamp Assy - Rear Combination LH - Narrow Fender

1шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

6шт.

4

15896211

NUT,M6, Cl 8

6шт.

5

87313269

SIDE LAMP ASSY

Lamp Position, Incl 6 - 9

1шт.

6

82037611

SUPPORT

Bracket Assy - Side/Turn Ind-RH

1шт.

7

87304547

SIDE LAMP ASSY,12V, 21W

Lamp Turn/Smv With Position, Incl 8, 9

1шт.

8

14148090

BULB,PY21W, 12V, 21W

Single Filament Lamp

2шт.

9

10857790

BULB,R10W, 12V, 5W

2шт.

10

87313268

SIDE LAMP ASSY

Lamp Turn/Smv, Incl 8, 9, 11, 12

1шт.

11

82037613

SUPPORT

Bracket Assy - Side/Turn Ind-LH

1шт.

12

87304549

SIDE LAMP ASSY,12V, 21W

Turn Indicator LH, Incl 8, 9

1шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

14

84188431

SCREW,Pan HD, M8 x 25mm, Cl 8.8

4шт.

15

47633262

FLASHER UNIT,12V, 21W

Iso

1шт.

16

84543528

RELAY,12V, 20A, Micro

Plug In Micro Spdt

1шт.

17

87301983

INTERIOR LIGHT,12V, 10W

Lamp Courtesy, Incl 18

1шт.

18

14149590

BULB,12V, 10W

1шт.

19

87301962

LAMP,M4II, Led, 12V

Console Led

1шт.

20

47551238

NUT

2шт.
