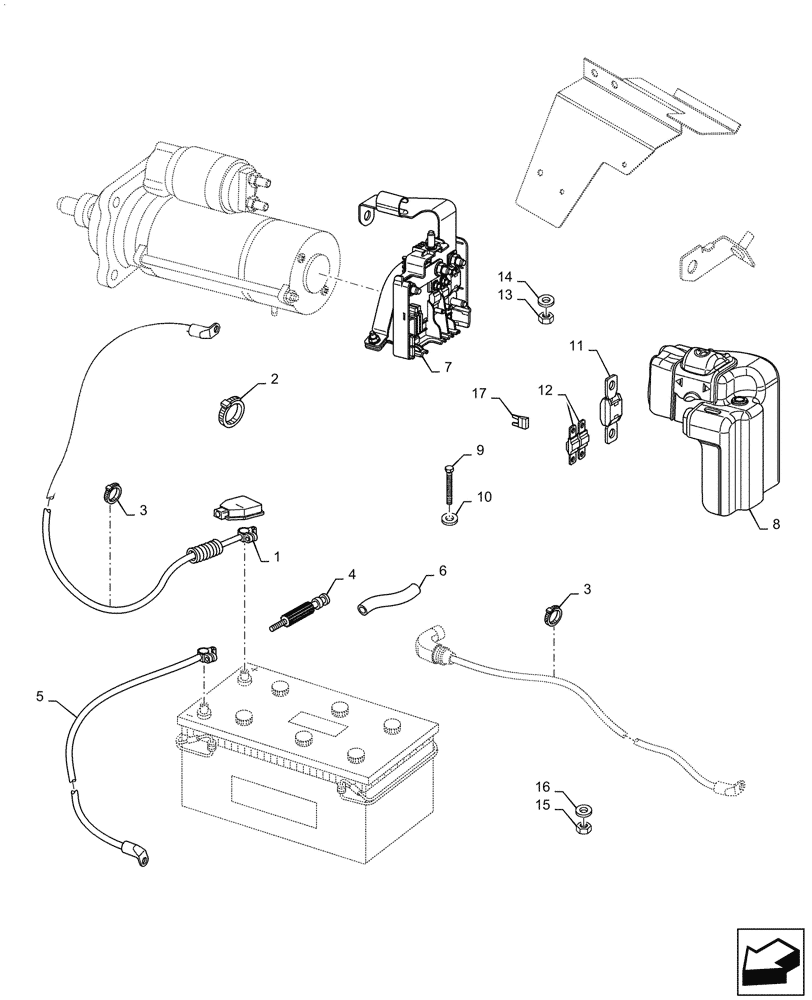

Запчасти Case IH PUMA1654 (55.302.AV[02]) - BATTERY CABLES (55) - ELECTRICAL SYSTEMS

1

84350257

POS BATTERY CABLE

1шт.

2

82001040

CABLE TIE,.19" x 11.5"

1шт.

3

83933061

STRAP

Cable Tie

3шт.

4

82028966

TERMINAL CONNECTOR,M10 x 1.5, CL 8.8

1шт.

5

87487740

NEG BATTERY CABLE,1250mm L

1шт.

6

84178749

PROTECTIVE SLEEVE

1шт.

7

84396491

FUSE BOX

Assy Load Centre Housing

1шт.

8

84255327

COVER

Fuse Box Assy

1шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

11

82033972

FUSE,250A

Power

1шт.

12

87390344

FUSE,30A, MIDIVAL

1шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

14

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

15

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

16

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

17

10401290

FUSE,25 amp Mini

1шт.
