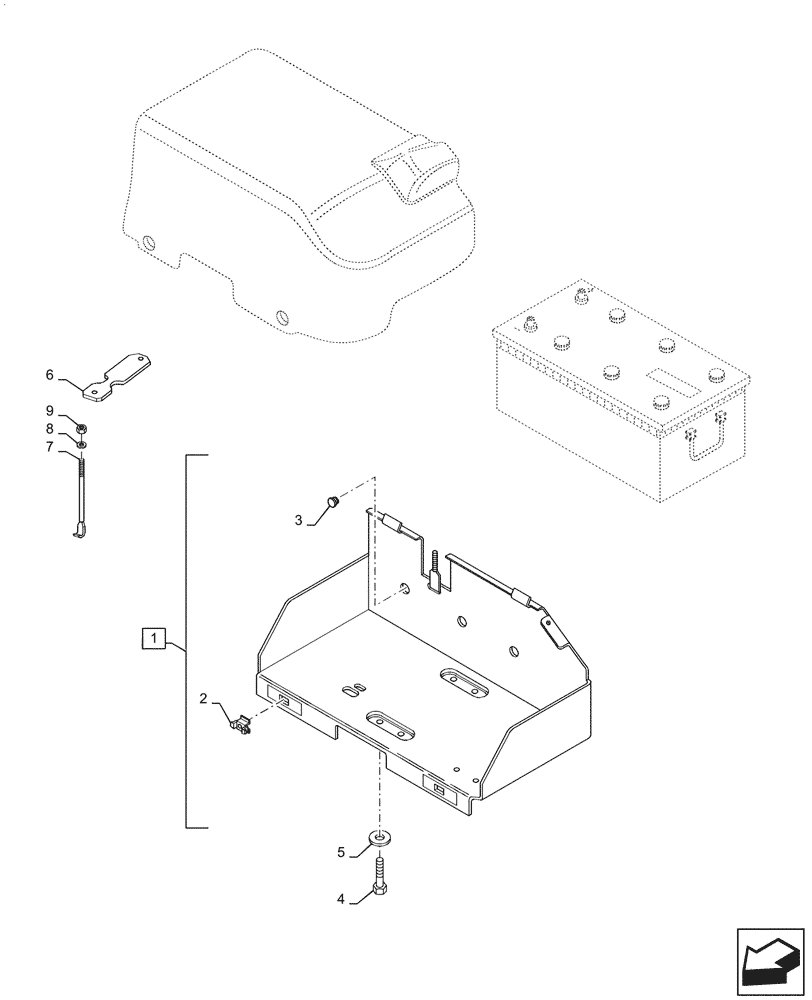

Запчасти Case IH PUMA1654 (55.302.AK[01]) - BATTERY SUPPORT (55) - ELECTRICAL SYSTEMS

1

84131119

BATTERY TRAY

Assembly, Incl 2, 3

1шт.

2

83991620

RETAINER

Hood Side Panel Latch

2шт.

3

81869893

SUPPORT

Pad, Battery Tray

3шт.

4

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

5

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

6

82020166

BRACKET

Battery Hold Down

1шт.

7

82020168

ROD

Battery Hold Down

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

9

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.
