(55.020.AF[03]) - TRANSMISSION HOUSING, SPEED SENSOR

Запчасти Case IH PUMA1654 (55.020.AF[03]) - TRANSMISSION HOUSING, SPEED SENSOR (55) - ELECTRICAL SYSTEMS

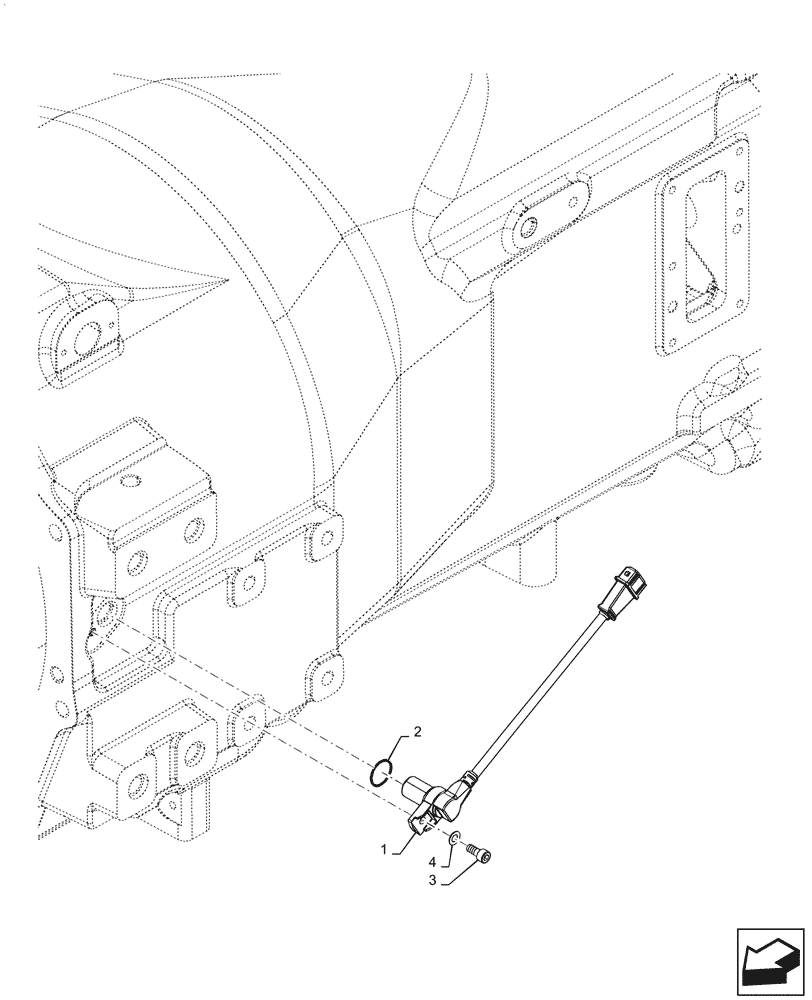

Схема запчастей Case IH PUMA1654 - (55.020.AF[03]) - TRANSMISSION HOUSING, SPEED SENSOR (55) - ELECTRICAL SYSTEMS
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47766973

SENSOR

Speed Hall Transmission

2шт.

2

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

2шт.

3

14305720

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

2шт.

4

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.
