(55.020.AB[02]) - TRANSMISSION, SPEED SENSOR

Запчасти Case IH PUMA1654 (55.020.AB[02]) - TRANSMISSION, SPEED SENSOR (55) - ELECTRICAL SYSTEMS

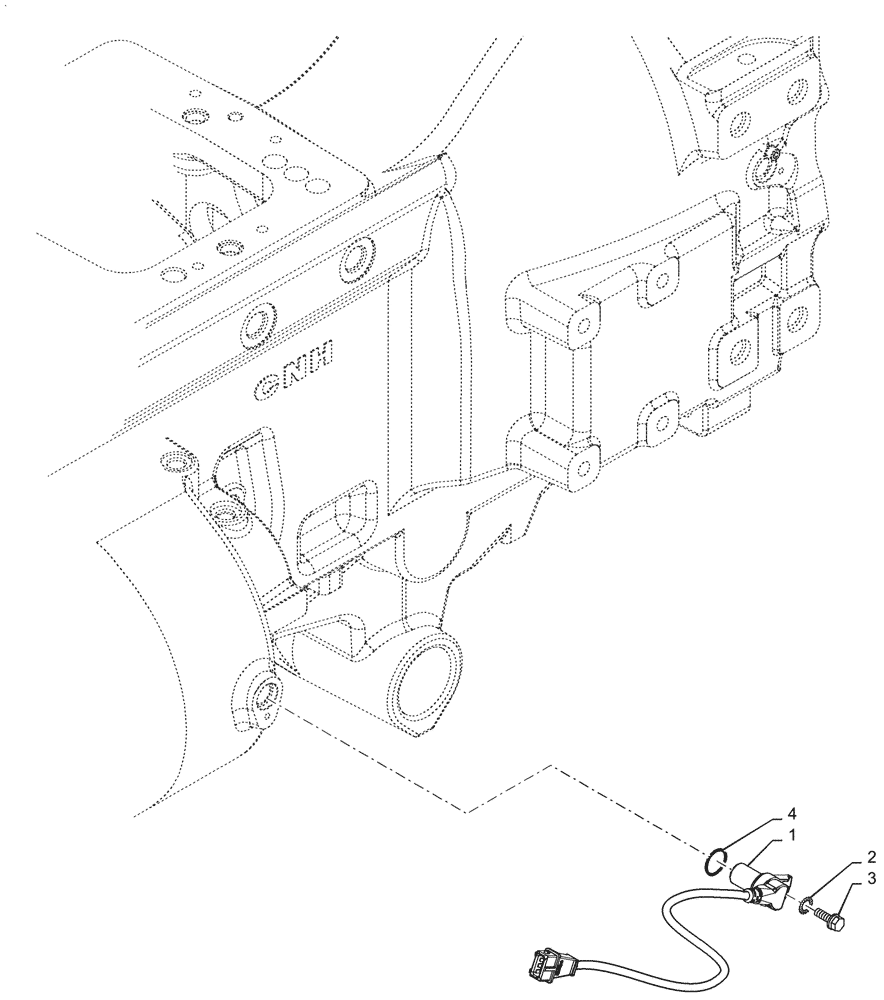

Схема запчастей Case IH PUMA1654 - (55.020.AB[02]) - TRANSMISSION, SPEED SENSOR (55) - ELECTRICAL SYSTEMS
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47766973

SENSOR

Speed Hall Transmission

1шт.

2

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

3

14305720

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

4

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.
