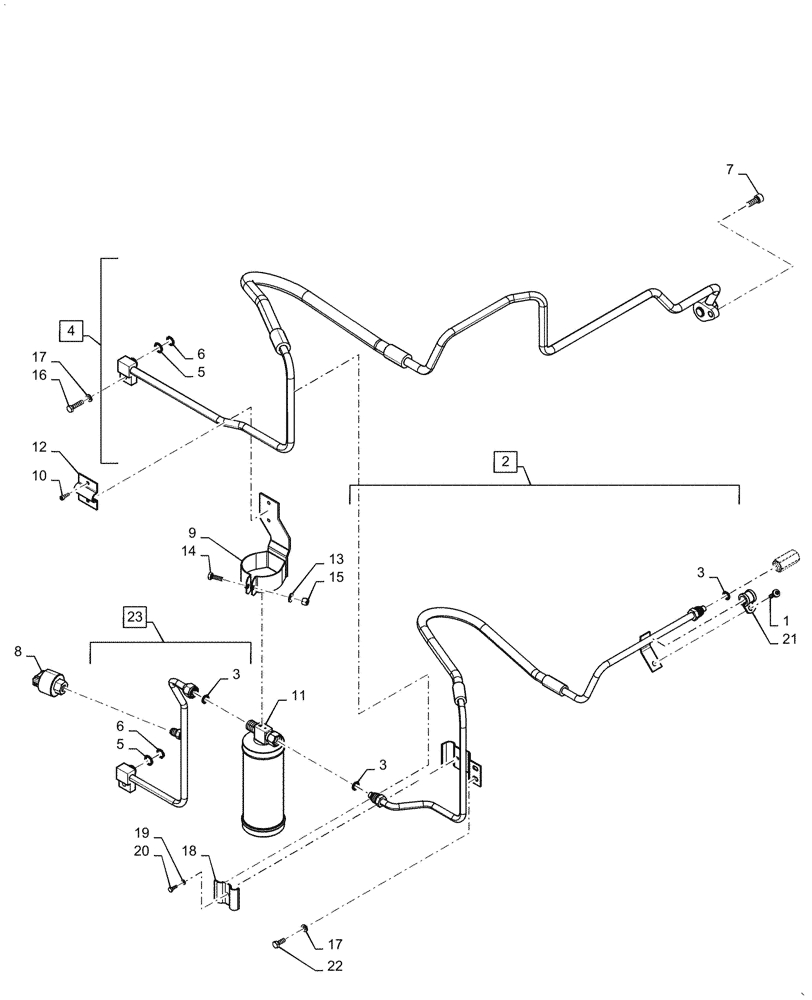

Запчасти Case IH PUMA1654 (50.200.BY[05]) - AIR CONDITIONING, LINE (50) - CAB CLIMATE CONTROL

1

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

2

47418365

PIPE

Tube, Hose Assy, Conditioning/Drier 6 Cylinder, Incl 3

1шт.

3

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

3шт.

4

47418354

PIPE

Tube Assy Conditioning/Compressor, Incl 5, 6

1шт.

5

10319183

O-RING,13.1mm ID x 1.6mm Width

1шт.

6

14450683

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

8

84233818

PRESSURE SWITCH

A/C High

1шт.

9

87750158

BRACKET

Assy Drier - Front Mounted

1шт.

10

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

2шт.

11

47446235

RECEIVER-DRYER

With Dye and Spacer

1шт.

12

84233849

BRACKET

A/C Pipe

1шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

Lock

1шт.

14

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

15

12574211

NUT,M6 x 1, Cl 8

1шт.

16

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

17

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

18

87653304

BRACKET

A/C Pipe

1шт.

19

10615279

LOCK WASHER,M4, Serr

4шт.

20

87015756

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

2шт.

21

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

Clamp Closed

1шт.

22

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

23

84582953

HYD TUBE

Assy Conditioning/Drier Trinary, Incl 3, 5, 6

1шт.
