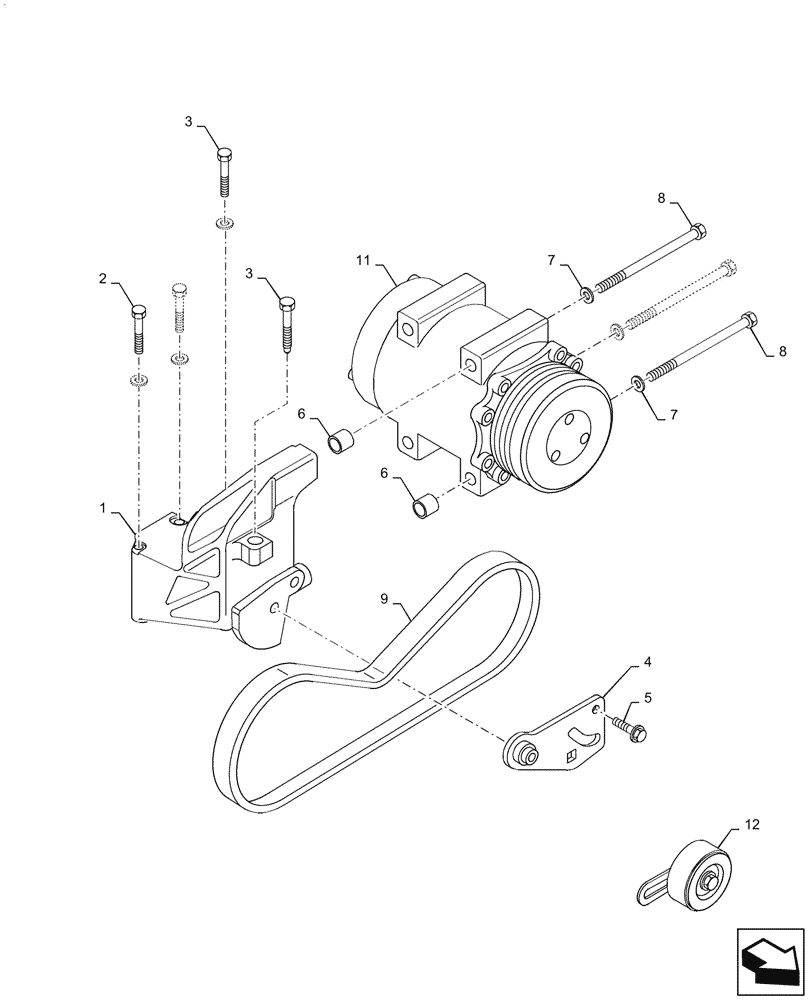

Запчасти Case IH PUMA1654 (50.200.AA[01]) - COMPRESSOR, AIR CONDITIONING (50) - CAB CLIMATE CONTROL

1

84221441

SUPPORT

Bracket Compressor

1шт.

2

87015921

BOLT,Hex, M10 x 75mm, Cl 10.9

Flange

2шт.

3

87646157

FLANGE BOLT,Hex, M10 x 40mm, Cl 10.9

1шт.

4

84221442

TENSIONER

Assy

1шт.

5

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

Flange

2шт.

6

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

Dowel

2шт.

7

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

8

16046134

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

3шт.

9

4899373

V-BELT,14.24 mm W x 962.00 mm L, 4 Ribs

1шт.

10

2856720

PULLEY

Belt Guide

1шт.

11

87709785

AIRCOND. COMPRESSOR,12V, 43W, W/ Pulley

1шт.

11

47808999R

REMAN-A/C COMPRESSOR

Reman Compressor

1шт.

11

47808999C

CORE-A/C COMPRESSOR

Core Return Number

1шт.
