(50.104.AQ) - HEATING/AIR CONDITIONING - HEATER-AIR CONDITIONER AND RELATED PARTS

Запчасти Case IH PUMA1654 (50.104.AQ) - HEATING/AIR CONDITIONING - HEATER-AIR CONDITIONER AND RELATED PARTS (50) - CAB CLIMATE CONTROL

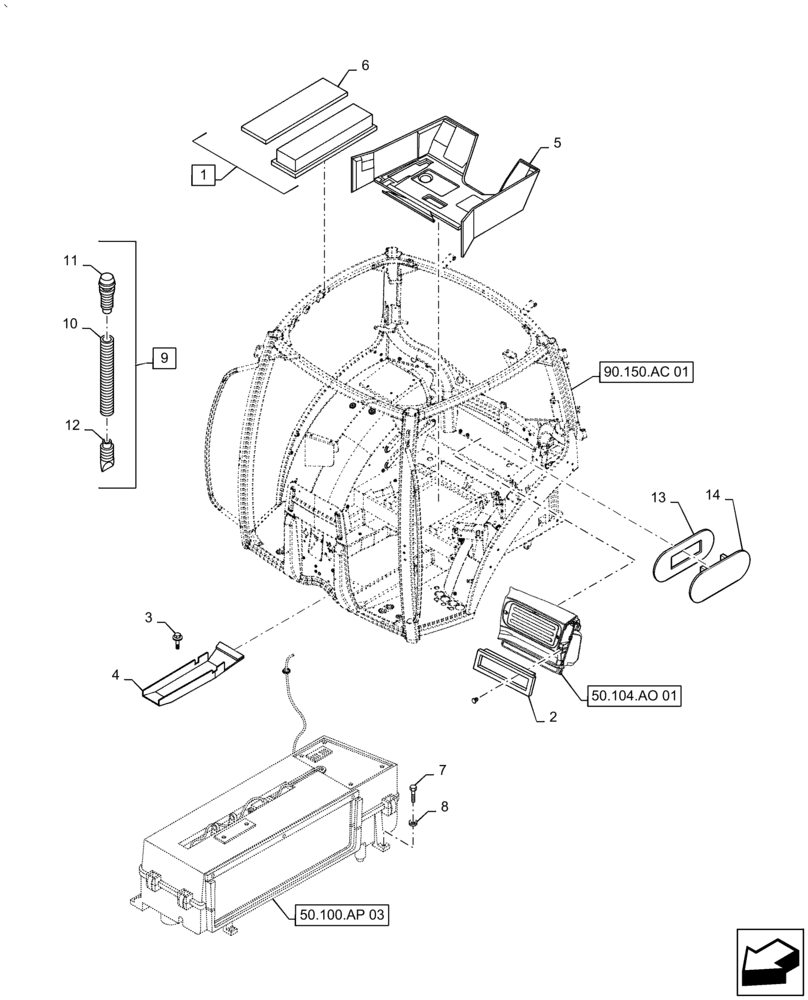

Схема запчастей Case IH PUMA1654 - (50.104.AQ) - HEATING/AIR CONDITIONING - HEATER-AIR CONDITIONER AND RELATED PARTS (50) - CAB CLIMATE CONTROL
11
50.100.ap 03
8
7
4
90.150.ac 01
3
9
6
1
50.104.ao 01
12
2
14
10
13
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

2шт.

2

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

3

87581911

FLANGE BOLT,Hex, M6 x 25mm

2шт.

4

87661587

INSULATOR

RH

1шт.

4

87661589

INSULATOR

LH

1шт.

5

87661585

INSULATOR

1шт.

6

87726694

FOAM

1шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

9

84232466

TUBE

2шт.

10

84232468

HOSE,25.40 mm ID x 800.00 mm

2шт.

11

84231998

DRAIN

2шт.

12

84232000

CHECK VALVE

2шт.

13

87641801

SPACER

1шт.

14

82026130

COVER

1шт.
