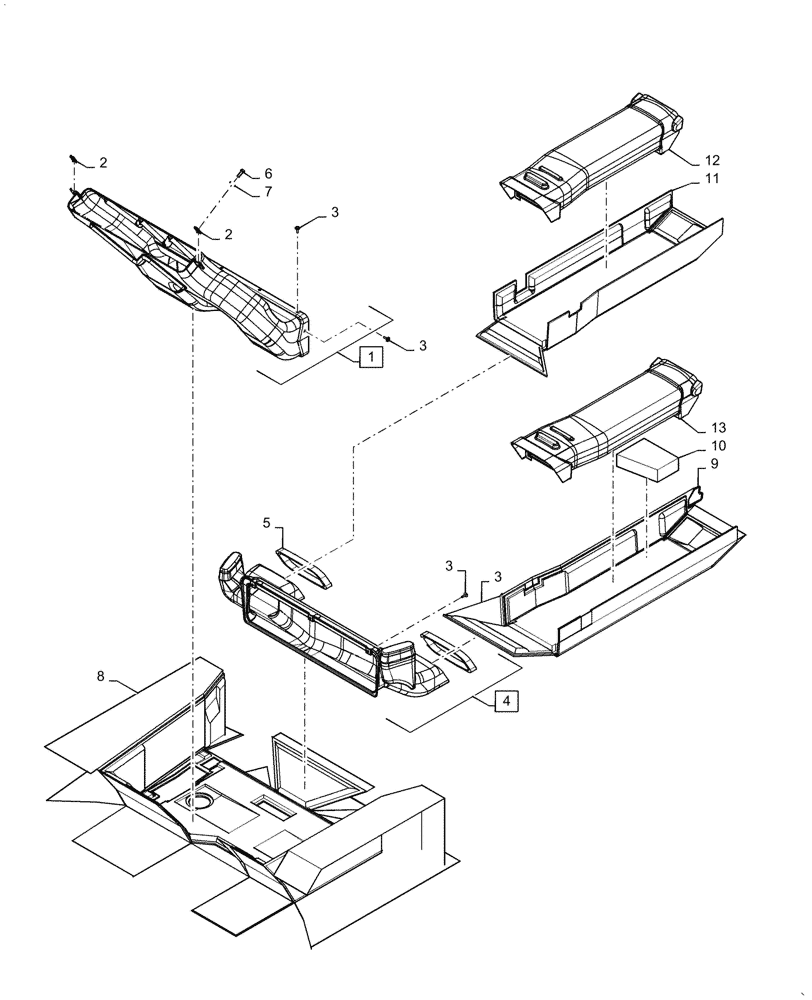

Запчасти Case IH PUMA1654 (50.104.AO[03]) - HEATING/AIR CONDITIONING - VENTILATION DUCTS (50) - CAB CLIMATE CONTROL

1

87614773

AIR DUCT

Assy Blower, Incl 2

1шт.

2

87567755

SPRING NUT,M5

2шт.

3

82023989

CAPTIVE WASHER SCREW,Cross Pan Hd, #8 - 18 x 0.75", Type AB Thd Forming Pt

Assy - Pan Head

13шт.

4

87311195

AIR DUCT

Assy Module Outlet, Incl 5

1шт.

5

82034490

SEAL

2шт.

6

84187815

SCREW,Pan Hd, M5.5 x 1.8 x 19mm

Tapping

2шт.

6

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

2шт.

7

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

8

87661585

INSULATOR

Rear Floor

1шт.

9

87661587

INSULATOR

Front Floor RH

1шт.

10

87516780

FOAM

Support - Rear Mat

1шт.

11

87661589

INSULATOR

Front Floor LH

1шт.

12

87301550

DUCT

Assy - Front Left Hand

1шт.

13

87301551

DUCT

Assy - Front Right Hand

1шт.
