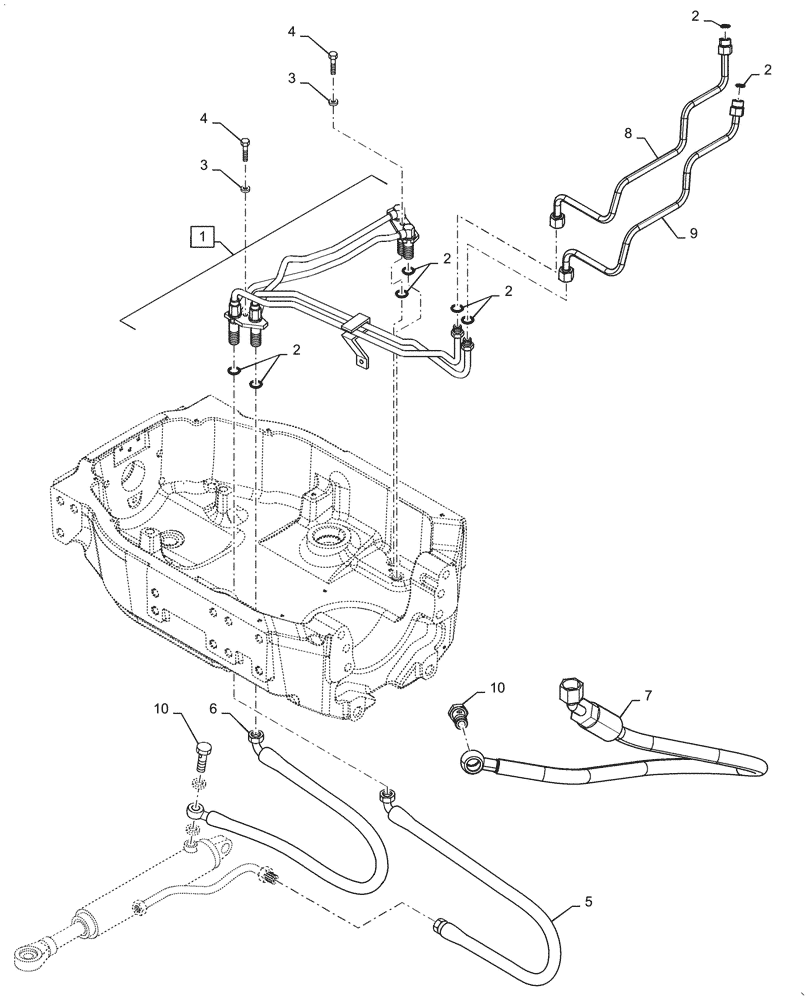

Запчасти Case IH PUMA1654 (41.200.AO[02]) - STEERING CYLINDER PIPES AND POWER STEERING PIPES (41) - STEERING

1

87702719

PRESSURE PIPE

Plate Assy - Power Steering, Incl 2

1шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

3

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

4

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

5

87352542

HOSE,550.00mm

Tube Assy Power Steering - Standard - SWB

2шт.

6

87635653

HOSE,675.00mm

Tube Assy Power Steering - Standard

1шт.

7

87644884

HOSE,675.00mm

Tube Assy Power Steering Steering

1шт.

8

87387917

PIPE

Incl 2

1шт.

9

87387918

PIPE

Incl 2

1шт.

10

10184311

BANJO BOLT,M14 x 1.5 x 27mm

2шт.
