(41.101.AB[04]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN

Запчасти Case IH PUMA1654 (41.101.AB[04]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN (41) - STEERING

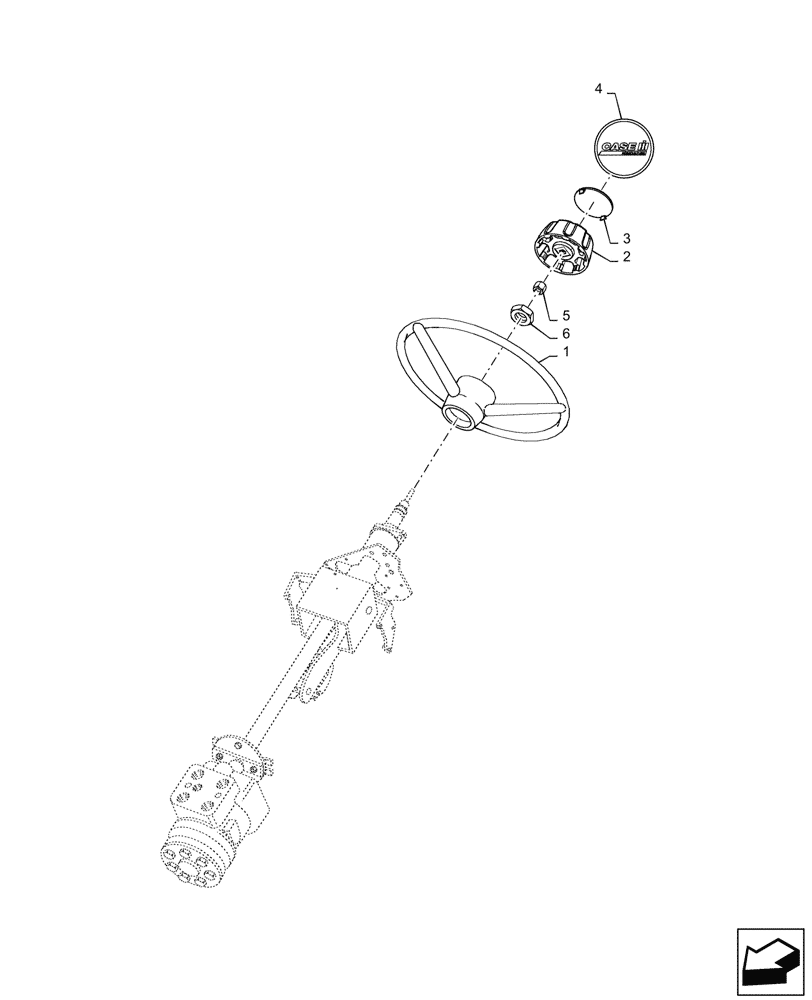

Схема запчастей Case IH PUMA1654 - (41.101.AB[04]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN (41) - STEERING
3
4
1
6
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9821708

STEERING WHEEL

1шт.

2

87302160

KNOB

Steering Wheel

1шт.

3

87302798

CAP,54mm OD, Black

Hub - Steering Wheel

1шт.

4

86401707

EMBLEM

1шт.

5

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

Prev Torque

1шт.

6

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

Выбрано товаров: 6
