(41.101.AB[03]) - STEERING COLUMN AND WHEEL

Запчасти Case IH PUMA1654 (41.101.AB[03]) - STEERING COLUMN AND WHEEL (41) - STEERING

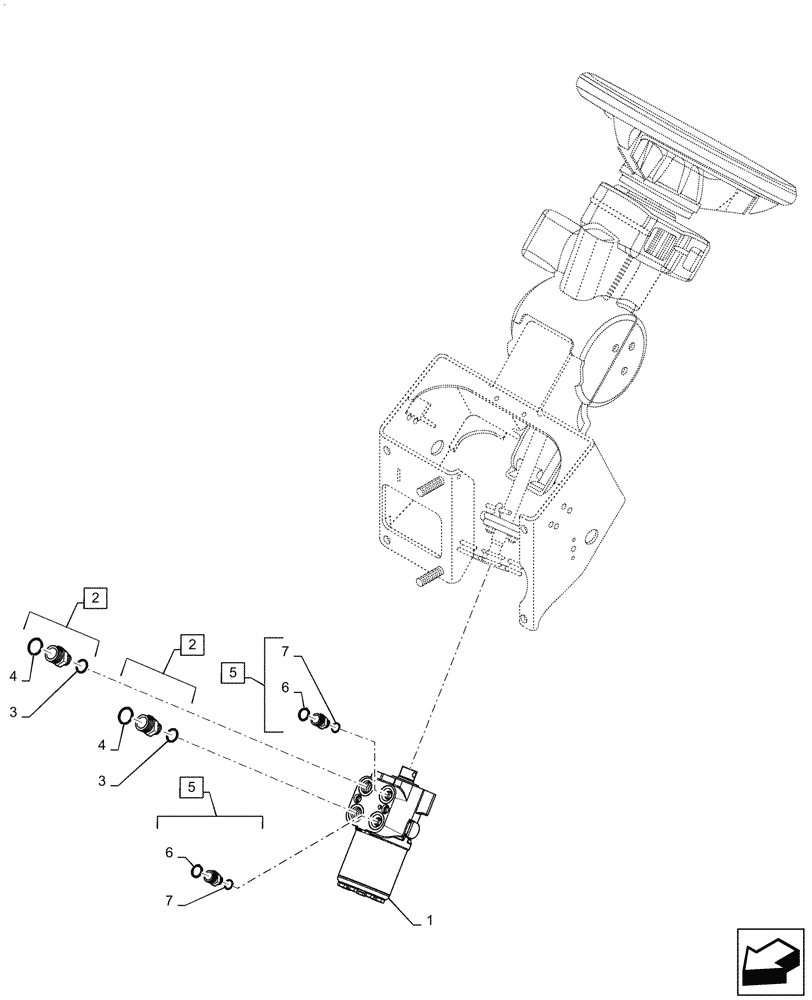

Схема запчастей Case IH PUMA1654 - (41.101.AB[03]) - STEERING COLUMN AND WHEEL (41) - STEERING
7
1
3
3
7
4
5
2
6
6
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47403484

STEERING VALVE

1шт.

2

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

Incl 3, 4

2шт.

3

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

4

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

Power Steering Tube, Incl 6, 7

2шт.

6

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.
