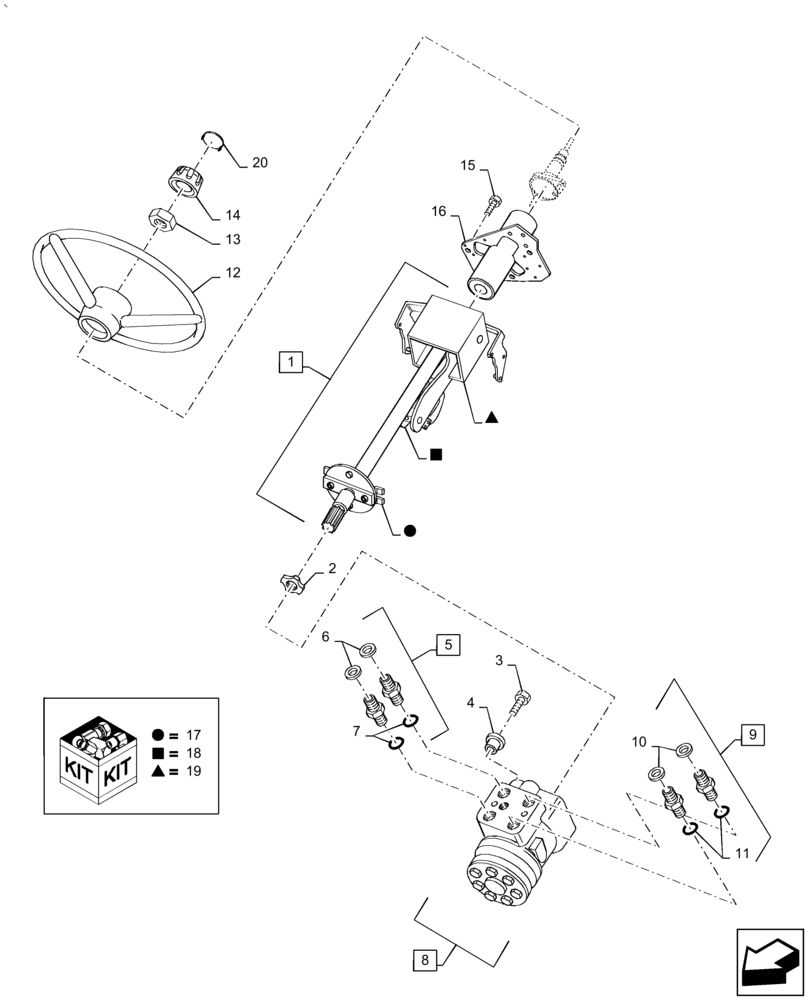

Запчасти Case IH PUMA1654 (41.101.AB[01]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN (41) - STEERING

1

47383940

STEERING COLUMN,Tilting, Telescoping

Tilt and Telescopic

1шт.

2

81873344

RUBBER INSULATOR

1шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

4

82009429

ISOLATOR

4шт.

5

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

2шт.

6

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

7

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

8

47403483

STEERING VALVE

Assy

1шт.

47403483R

Reman Steering Valve

REMAN-HYD VALVE

1шт.

47403483C

Return Number

CORE-VALVE HYD

1шт.

9

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

2шт.

10

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

11

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

84574824

STEERING WHEEL

1шт.

13

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

14

84575428

KNOB

1шт.

15

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

1шт.

16

87710001

SUPPORT

1шт.

17

87521601

FLEXIBLE COUPLING

1шт.

18

84599544

GAS STRUT

1шт.

19

87709998

SUPPORT

1шт.

20

84187978

EMBLEM

Hub Steering Wheel

1шт.
