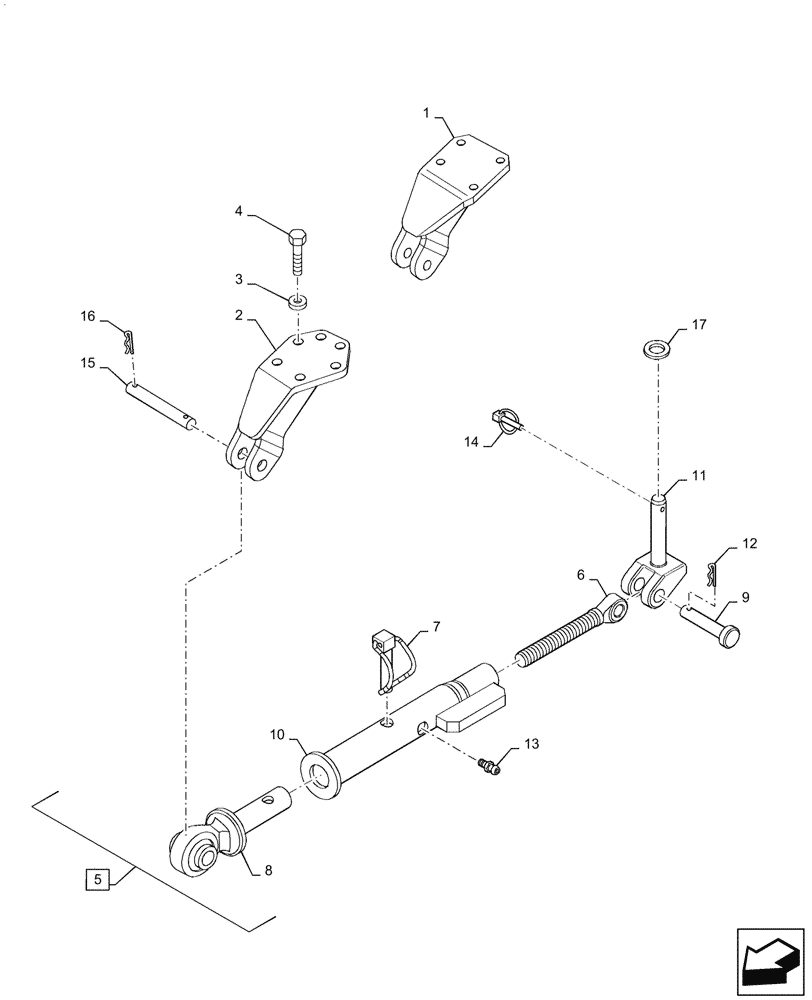

Запчасти Case IH PUMA1654 (37.120.AF[03]) - LATERAL STABILIZERS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5190471

SUPPORT

LH Stabilizer

1шт.

2

5190497

SUPPORT

RH Stabilizer

1шт.

3

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

8шт.

4

15984321

BOLT,Hex, M18 x 1.5 x 50mm, Cl 8.8

8шт.

5

47133794

STABILIZER

Assy, Incl 6 - 13

2шт.

6

5103856

ROD,M27 x 3

Rear End arm

1шт.

7

5103862

LOCK PIN,16mm OD

Hitch Assy

1шт.

8

5153265

END

Front Assy

1шт.

9

47134675

PIN,26mm OD x 77mm L

Rear Stabilizer

2шт.

10

87387442

SLEEVE,31mm ID x 45mm OD x 318mm L

Assy

1шт.

11

87382848

FORK

Pin Satbilizer

1шт.

12

10798401

COTTER PIN,6.60mm Dia x 40.00mm, ZND

1шт.

13

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

Fitting

1шт.

14

47125579

LINCH PIN,11.5mm OD

2шт.

15

5125861

PIN,19mm OD x 105mm L

Stabilizer

2шт.

16

10798404

COTTER PIN,6.3mm Dia x 40.00mm, DAC

4шт.

17

562106

WASHER,25.50mm ID x 45.00mm OD

2шт.
