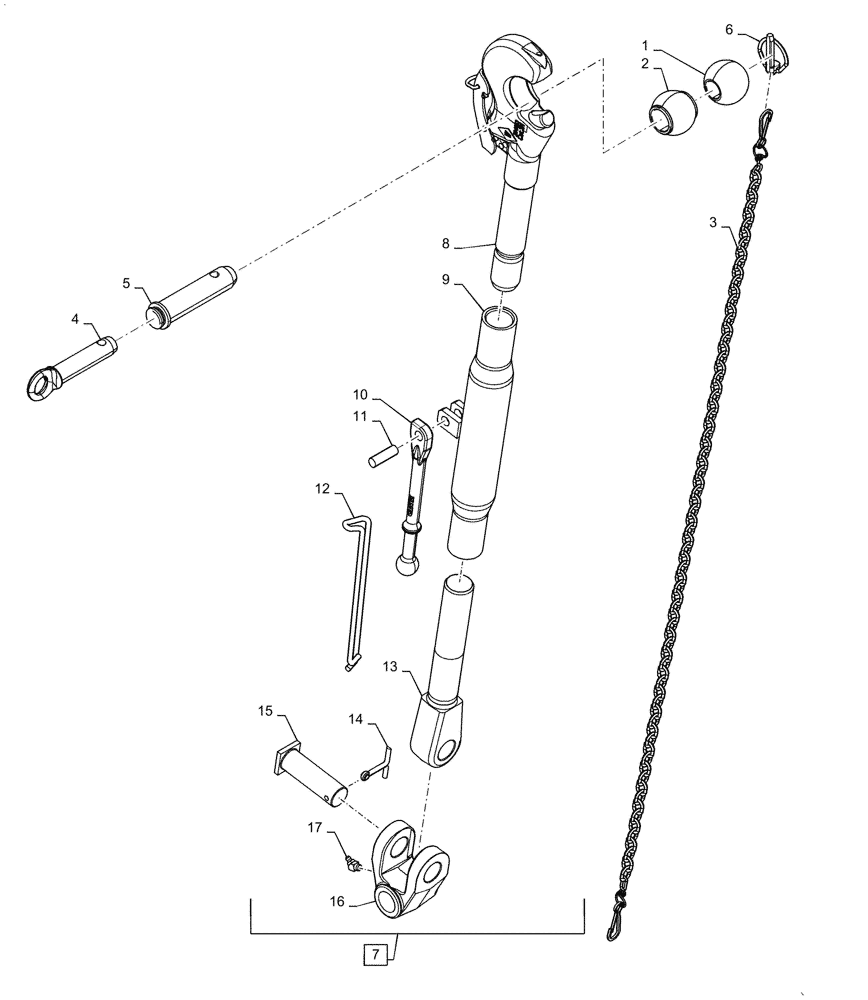

Запчасти Case IH PUMA1654 (37.120.AA[04]) - HITCH, TOP LINK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5116059

BUSHING,25.4mm ID x 60mm OD x 51mm L

Cat.2

1шт.

2

5116060

BUSHING,32mm ID x 60mm OD x 51mm L

Cat.3

1шт.

3

5174402

LINK CHAIN,1500mm L

Device Cat 3-2

1шт.

4

822483

PIN,25.5mm OD x 137mm L

Top Link

1шт.

5

44015196

PIN,31.75mm OD x 146mm L

Rod

1шт.

6

5166585

LOCK PIN,11mm OD

Cotter 3 Point Linkage

1шт.

7

84517031

UPPER LINK

Strut Top Qa, Incl 8 - 17

1шт.

8

84157356

HOOK

Ws Top Link

1шт.

9

84584459

TURNBUCKLE,M36 x 3

Tube Strut Top Link

1шт.

10

5172394

LEVER

1шт.

11

14613471

ROLL PIN,12mm OD x 40mm L

Slotted

1шт.

12

5140619

SPRING,215mm L

1шт.

13

84584445

LIFT LINK END ASSY,M36 x 3, LH Thread

Rod Threaded

1шт.

14

300423

COTTER PIN,M6.3 x 50

1шт.

15

5161789

PIN,34mm OD x 91mm L

Collar Top Link

1шт.

16

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

Fitting

1шт.

17

5161787

YOKE,28mm D x 28mm D

Collar For Top Link

1шт.
