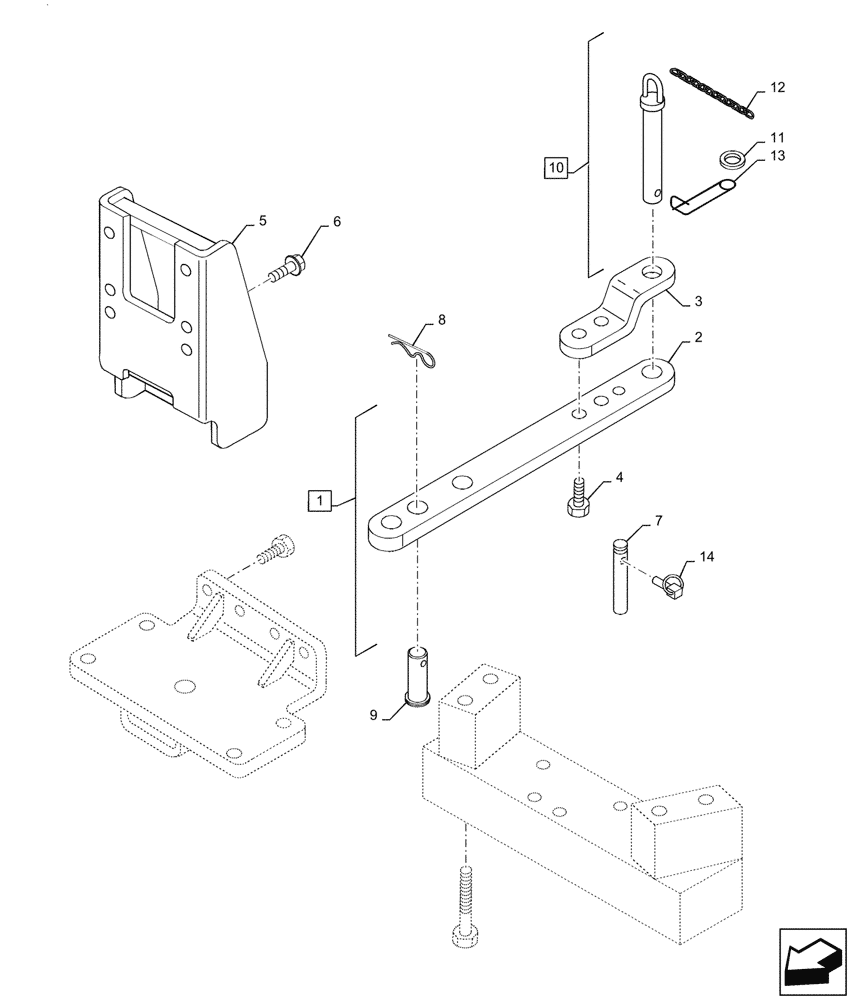

Запчасти Case IH PUMA1654 (37.100.AA[02]) - DRAWBAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87566049

DRAWBAR

Assy, Incl 2 - 4

1шт.

2

87566048

DRAWBAR

1шт.

3

82026931

SUPPORT,254mm L x 75mm W x 30mm Thk, 70mm Offset

1шт.

4

11125234

SCREW,Hex, M20 x 75mm, Cl 10.9

2шт.

5

47630252

FRAME

Hanger

1шт.

6

82018940

BOLT,Flng, M18 x 1.5 x 45mm, Cl 12.9

Drawbar Hanger Retaining

8шт.

7

82015207

PIN,16mm OD x 141mm L

Drawbar Adjusting

2шт.

8

82000094

SPRING,40mm OD x 142mm L

Drawbar Pin

1шт.

9

87558077

PIN,32mm OD x 102mm L

Clevis

1шт.

10

87579063

HITCH PIN,32mm OD x 182mm L

Incl 11 - 13

1шт.

11

44901192

SNAP RING,25mm ID

1шт.

12

596063

LINK CHAIN,13 Links x 18mm = 234mm L

Pin for Towing Bar

1шт.

13

5152004

HAIR PIN COTTER,195mm L

Spring Torsion

1шт.

14

82014909

LOCK PIN,5.5mm OD

Ring Assy

2шт.
