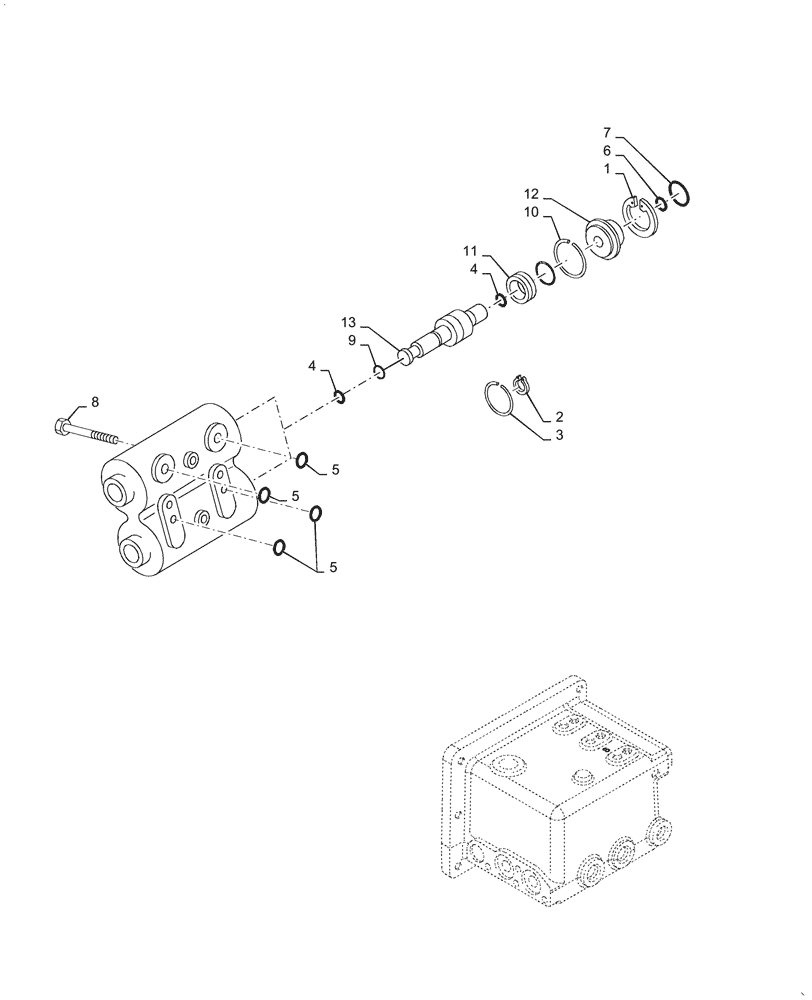

Запчасти Case IH PUMA1654 (35.322.AD[03]) - LOW PRESSURE, MANIFOLD, RELATED PARTS (35) - HYDRAULIC SYSTEMS

1

11060976

SNAP RING,M60, Int

2шт.

2

11066870

CIRCLIP,M20

2шт.

3

13399076

CIRCLIP,39mm ID x 42mm OD

2шт.

4

14453480

O-RING,17.17mm ID x 1.78mm

2шт.

5

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

4шт.

6

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

4шт.

7

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

2шт.

8

16324624

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8

Lock

2шт.

9

5164866

SEAL,45mm OD x 4.2mm Thk

For Piston

4шт.

10

5164877

CIRCLIP,3.2mm Thk

For Bores

2шт.

11

5169154

RING,20mm ID x 44.9mm OD x 11.5mm Thk

2шт.

12

5169155

PLUG,20mm ID x 60mm OD x 23mm L

2шт.

13

5177563

PISTON

2шт.
