Запчасти Case IH PUMA1654 (35.322.AD[02]) - LOW PRESSURE, MANIFOLD, RELATED PARTS (35) - HYDRAULIC SYSTEMS

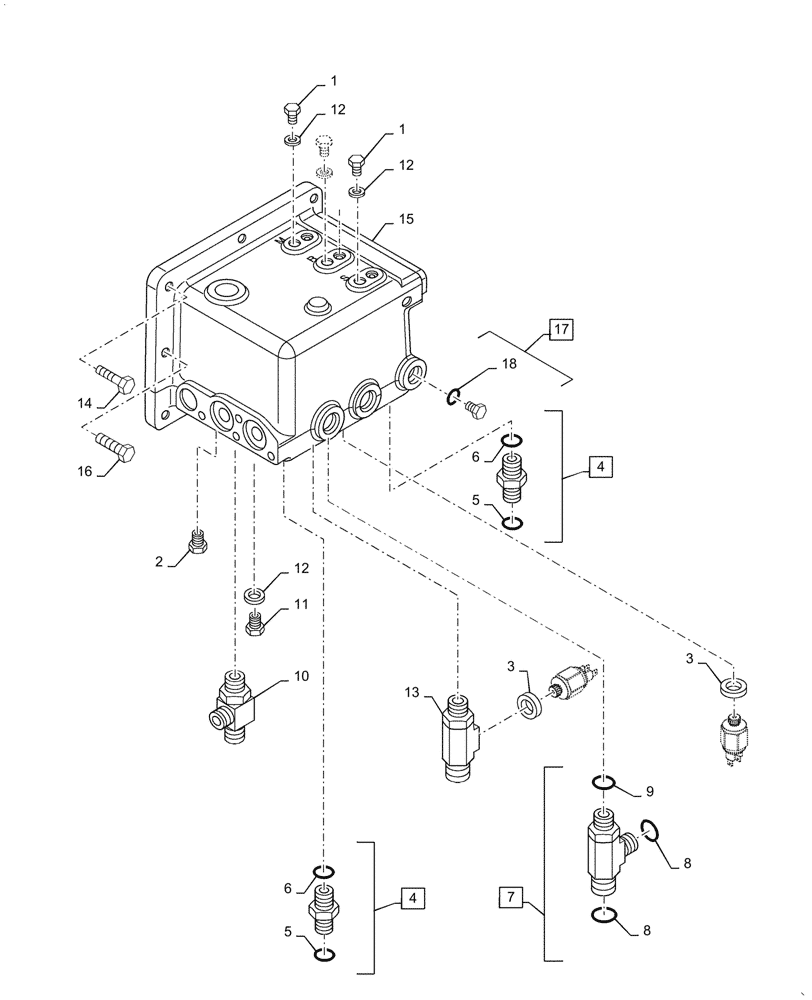

Схема запчастей Case IH PUMA1654 - (35.322.AD[02]) - LOW PRESSURE, MANIFOLD, RELATED PARTS (35) - HYDRAULIC SYSTEMS
1
18
8
15
1
7
12
5
16
17
12
6
6
11
4
10
8
5
2
12
14
4
3
13
9
3

Артикул

Название

Примечание

Количество

1

11903014

PLUG,HEX, M10 x 1

4шт.

2

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

3

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

Self - Centering

1шт.

4

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

Incl 5, 6

2шт.

5

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

6

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

7

5187064

TEE

Incl 8, 9

1шт.

8

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

10

87314182

HYD CONNECTOR,11/16-16 ORFS x 11/16-16 ORFS x M16 x 1.5 ORB

1шт.

11

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

12

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

13

87575165

HYD CONNECTOR,1"-14 x M8 x 1.5

1шт.

14

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

6шт.

15

5169152

BODY

Complete of Bushings

1шт.

16

11307024

BOLT,Hex, M10 x 1.25 x 40, 8.8, Full Thd

2шт.

17

10118740

PLUG,M14 x 1.5 x 15, Brass

Incl 18

1шт.

18

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

Выбрано товаров: 18
