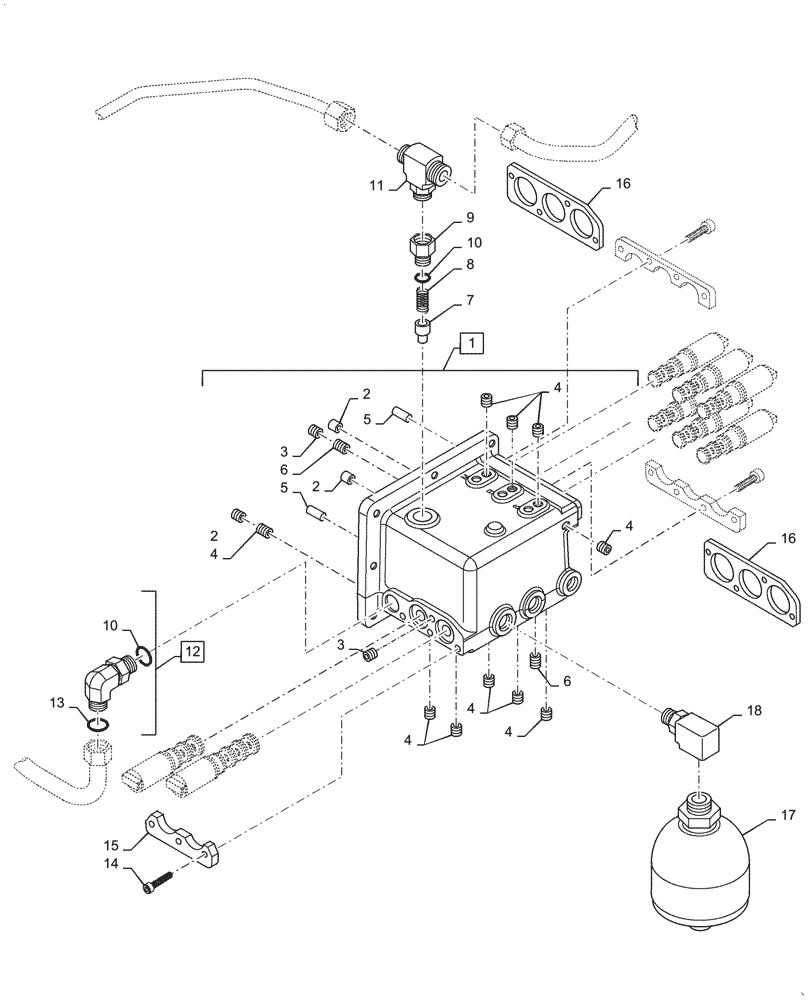

Запчасти Case IH PUMA1654 (35.322.AD[01]) - LOW PRESSURE, MANIFOLD (35) - HYDRAULIC SYSTEMS

1

87381541

VALVE BODY

Complete Servo Control Support, Incl 2 - 6

1шт.

2

5120207

BUSHING,10.5mm ID x 12.7mm OD x 19mm L

2шт.

3

10269404

PLUG,M12 x 1.5

Pipe

2шт.

4

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

Pipe

10шт.

5

10839710

DOWEL,M10 x 15.00mm

Pin Parallel

2шт.

6

87323514

SLEEVE VALVE

2шт.

7

5169565

VALVE,By-Pass

Spool

1шт.

8

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

Compression

1шт.

9

5195483

HYD CONNECTOR,M22 x 1.5 ORFS - M22 x 1.5 ORB

Union for By - Pass

1шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

11

87325405

HYD CONNECTOR,1"-14 ORFS x 13/16-16 ORFS x M22 x 1.5 ORB

Tee Branch

1шт.

12

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

Incl 10, 13

1шт.

13

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

11шт.

15

87386213

FIXING PLATE

Retaining Solenoid Valves

1шт.

16

84277154

MOUNTING PARTS

Plate

2шт.

17

87314179

ACCUMULATOR,0.75L

1шт.

18

87520335

HYD CONNECTOR,M22 x 1.5 x M22 x .5

1шт.
