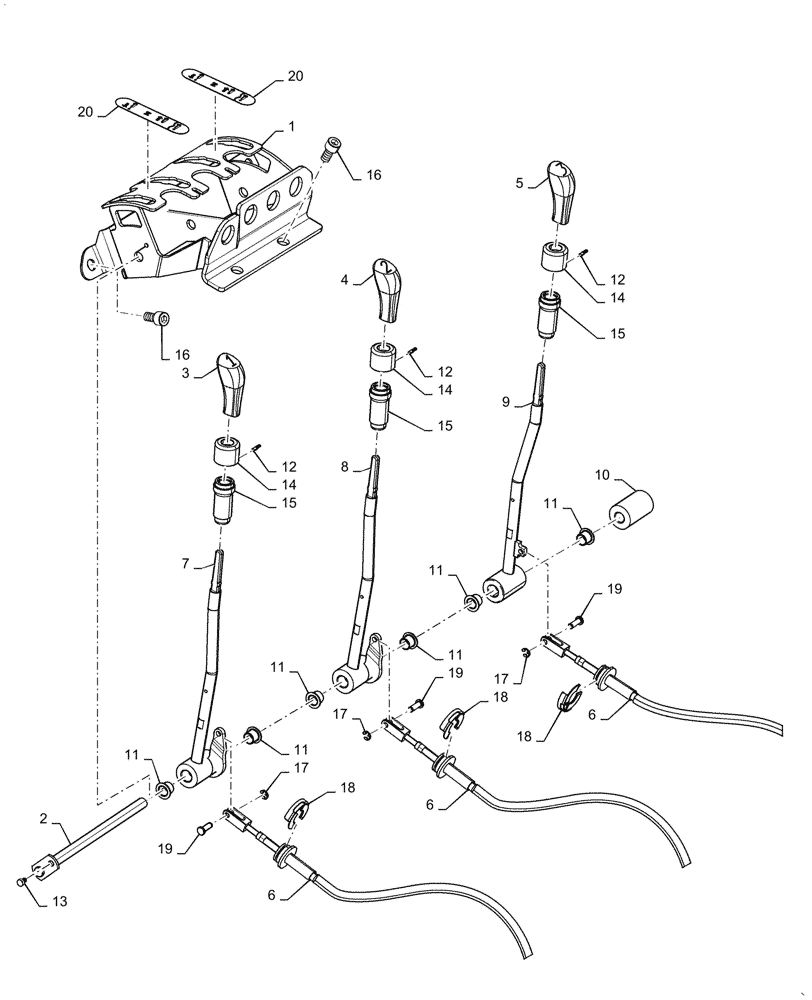

Запчасти Case IH PUMA1654 (35.204.BL[03]) - CONTROL VALVE CONTROL (35) - HYDRAULIC SYSTEMS

1

84373709

FRAME

Assy Mech Rem Cntrl Black

1шт.

2

84186398

HANDLED SHAFT

Assy

1шт.

3

82037910

KNOB

Remote Control

1шт.

4

82037911

KNOB

Remote Control

1шт.

5

82037912

KNOB

KnobRemote Control

1шт.

6

87678198

CABLE,1828mm L

Remote Control

3шт.

7

84373726

LEVER

1шт.

8

84373733

LEVER

Assy No2 Mech Rem Cntrl Black

1шт.

9

84373742

LEVER

Assy No3 Mech Rem Cntrl Black

1шт.

10

87738556

SPACER,12.1mm ID x 30mm OD x 49mm L

3Rd Remote Mechanical

1шт.

11

82035633

BUSHING

Remo Contr Lever

6шт.

12

84209523

SPRING LOCK

Neutral

3шт.

13

10856821

BOLT,Hex, M5 x 8mm, Cl 8.8, Full Thd

Capscrew

1шт.

14

84209516

LOCKING DEVICE

Body Upper Ntrl

3шт.

15

84209520

LOCKING DEVICE

Body Lower Ntrl

3шт.

16

14307374

BOLT,Hex Skt, M10 x 1.25 x 20mm, Cl 12.9, Full Thd

Screw Hex

4шт.

17

11087776

CIRCLIP,Ext., M6, BLO

Ring

3шт.

18

82007837

LOCKING RING

Clip Retaining Joystick Cable

3шт.

19

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

3шт.

20

87484588

DECAL

Remote Valve

2шт.
