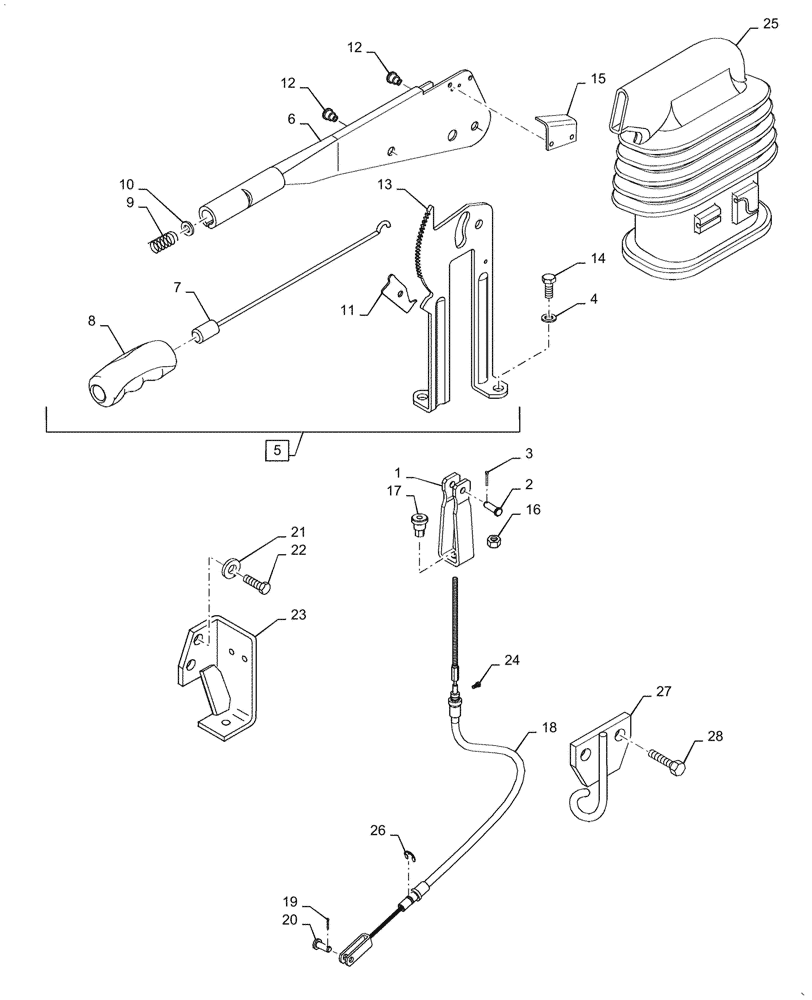

Запчасти Case IH PUMA1654 (33.110.AJ[02]) - HAND BRAKE CONTROL (33) - BRAKES & CONTROLS

1

84140224

CLEVIS

1шт.

2

83902558

PIN,3/8" x 1.312"

Clevis

1шт.

3

81813880

COTTER PIN,3/32" x 3/4"

1шт.

4

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

5

84174329

BRAKE LEVER

Assy Support Hand, Incl 6 - 13

1шт.

6

84174328

BRAKE LEVER

Assy Hand

1шт.

7

81870377

BUTTON

Assy Parking Brake

1шт.

8

81866090

HANDLE GRIP

Handbrake Lever

1шт.

9

84199076

SPRING,11.25mm OD x 44.5mm L

Brake Handle

1шт.

10

81866092

WASHER,5.5mm ID x 13.4mm OD x 1.2mm Thk

Parking Brake Lever

1шт.

11

82863025

PAWL,4.5mm Thk

Parking Brake Lever

1шт.

12

82000812

PIN,7.8mm OD x 7.4mm L

Parking Brake Lever Pawl

2шт.

13

84174325

SUPPORT

Hand Brake

1шт.

14

11106224

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

15

84199077

PROTECTION PLATE

Shield Bracket Parking Brake

1шт.

16

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

17

82000974

NUT,Adj., M8, 1.25 Pitch, 23.00mm High, Zinc

Hand Brake Adjust

1шт.

18

84140203

BOWDEN CONTROL

Cable

1шт.

19

10766901

COTTER PIN,M3.2 x 25

1шт.

20

10033411

PIN,10mm OD x 27mm L

1шт.

21

82879352

LOCK WASHER,M12

2шт.

22

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

23

87394905

BRACKET

Assy - Handbrake

1шт.

24

87305546

SCREW,Phillips Drive, Oval HD, M5 x 10mm, Cl 4.8

1шт.

25

84213451

BOOT

Handbrake

1шт.

26

11087374

CIRCLIP,M13

E-Ring

1шт.

27

82034369

SLIDE GUIDE

Handbrake Cable

1шт.

28

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.
