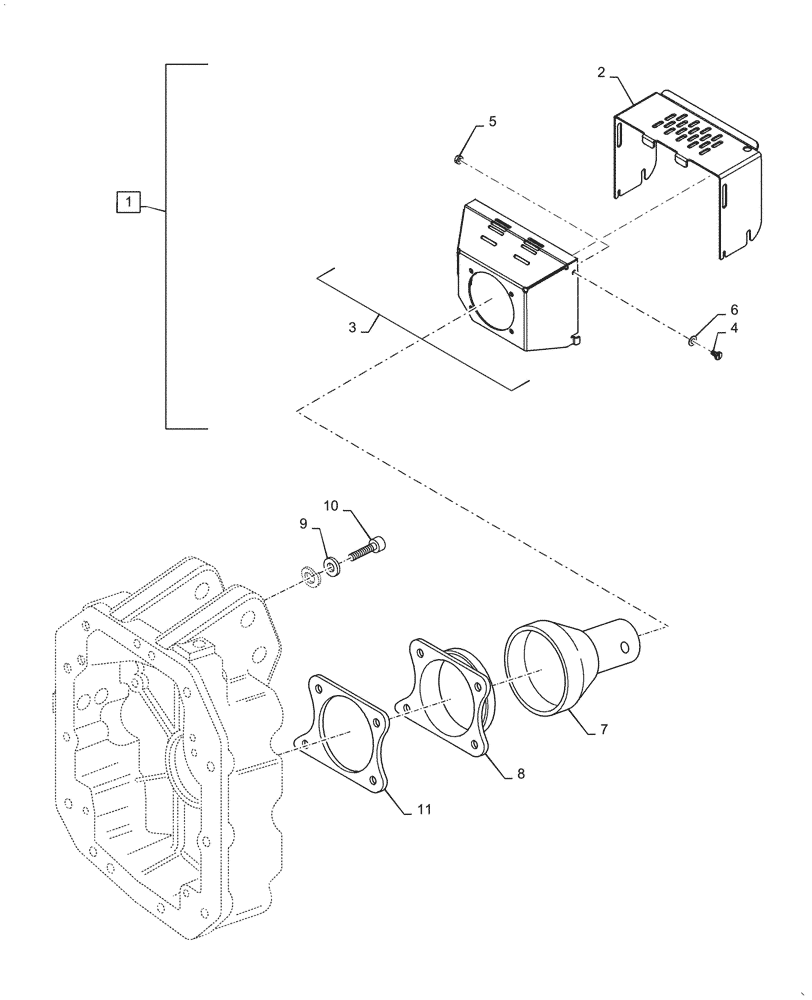

Запчасти Case IH PUMA1654 (31.201.AG[04]) - P.T.O. GUARD (31) - IMPLEMENT POWER TAKE OFF

1

84568331

COVER

Assy Protection PTO , Incl 2 - 6

1шт.

2

84568358

COVER

1шт.

3

NSS

NOT SOLD SEPARAT

Sheet Base

1шт.

4

84568360

SCREW,Flat, M8

2шт.

5

68841

NUT,M8 x 1.25, Cl 8

2шт.

6

84568361

SPRING-DISC

Compression Flat

2шт.

7

47125899

COVER,109mm L

1шт.

8

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

Shroud

1шт.

9

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

10

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

11

47131825

GUARD

P.T.O. Seal

1шт.
