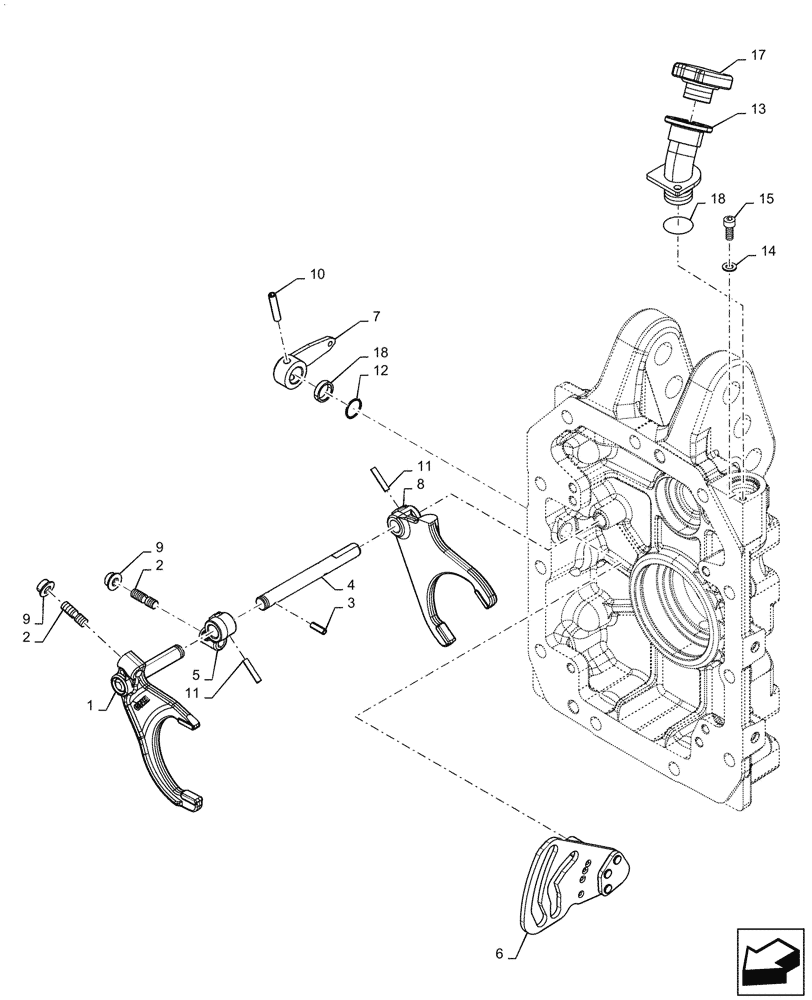

Запчасти Case IH PUMA1654 (31.116.AK[01]) - PTO 540/540E/1000 RPM, SELECTOR (31) - IMPLEMENT POWER TAKE OFF

1

87578125

SHIFTER FORK,PTO, 1000 RPM

Complete for 1000 RPM PTO Control

1шт.

2

5198711

PIN,10mm OD x 35mm L

PTO Speed Selector

2шт.

3

13909870

PIN,6mm OD x 20mm L

Coiled Spring

2шт.

4

87578130

ROD,16mm OD x 155mm L

Selector

1шт.

5

87578134

LEVER

PTO Shifter Dog

1шт.

6

87728054

SELECTOR

Pin

1шт.

7

87578133

CONTROL LEVER

Command Selector

1шт.

8

87580868

SHIFTER FORK,PTO, 540-750 RPM

540 - 750 RPM

1шт.

9

87580517

BUSHING,10mm ID x 21mm OD x 9.6mm L

2шт.

10

14607270

LOCK PIN,M8 x 40, Slotted

Slotted

1шт.

11

13910370

ROLL PIN,6mm OD x 30mm L

Coiled Spring

2шт.

12

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

13

47135307

FILLER

Pipe Oil

1шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

15

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

17

82005372

FILLER CAP,Male, Vented_No Lockable

Assy Oil Transmission

1шт.

18

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

Retaining Seal

1шт.
