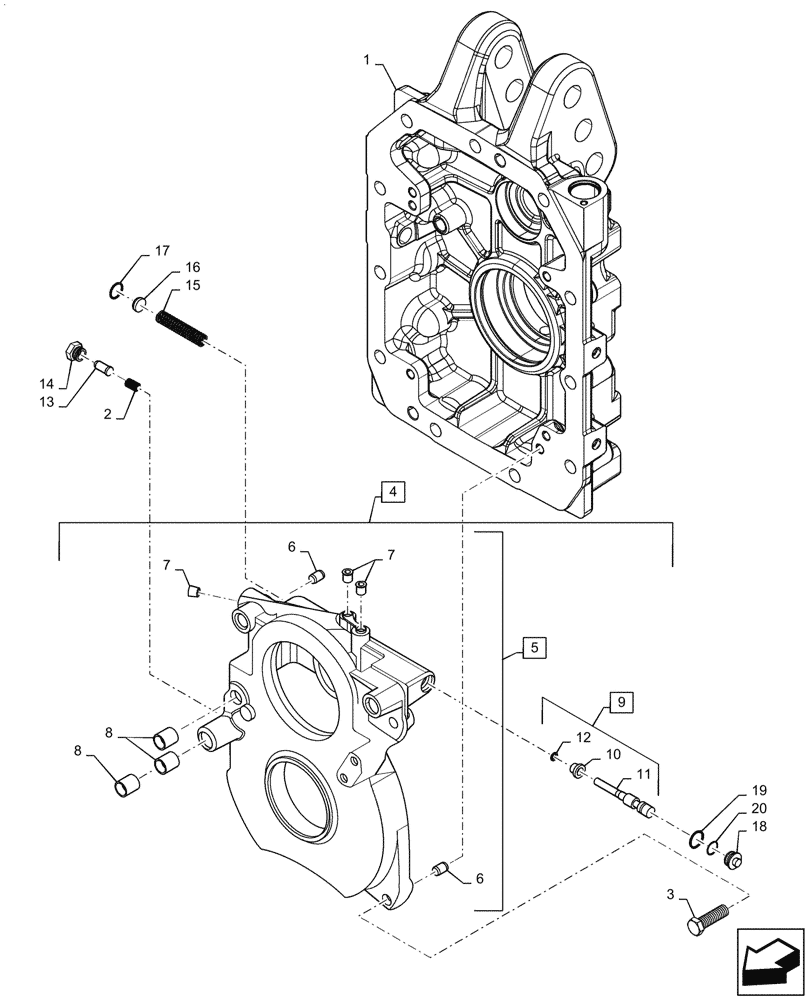

Запчасти Case IH PUMA1654 (31.116.AG[03]) - PTO CASE AND INTERNAL COVER (31) - IMPLEMENT POWER TAKE OFF

1

84303022

HOUSING

Transmission PTO

1шт.

2

5128251

SPRING,Compression, 8.5mm OD x 20mm L

Compression

1шт.

3

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

4

87673377

COVER

Support Assy with Valve, Incl 5 - 12

1шт.

5

87580869

SUPPORT

Bearing with Dowels, Incl 6 - 8

1шт.

6

10839710

DOWEL,M10 x 15.00mm

Pin Parallel

2шт.

7

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

Pipe

3шт.

8

5129030

BUSHING,16.04mm ID x 18mm OD x 20mm L

Pin Relay Lever

3шт.

9

47128616

VALVE

Assy, Incl 10 - 12

1шт.

10

13397370

SNAP RING,M8, Int

1шт.

11

47128521

VALVE

1шт.

11

82990921

VALVE,11.991mm/11.995mm OD x 85.5mm L, Class B

Class B

1шт.

11

82990922

VALVE,11.996mm/12.000mm OD x 85.5mm L, Class C

Class C

1шт.

11

82990923

VALVE,12.001mm/12.005mm OD x 85.5mm L, Class D

Class D

1шт.

11

82990924

VALVE,11.986mm/11.990mm OD x 85.5mm L, Class A

Class A

1шт.

12

84271074

SPACER,8mm ID x 15.6mm OD x 10mm L

Bushing

1шт.

13

5193099

PAWL,8.5mm D x 22.5mm L

1шт.

14

5193100

PLUG,Hex, M14 x 1.5

Pipe

1шт.

15

47123788

SPRING,15mm OD x 87.5mm L

F/PTO Valve

1шт.

16

47127951

CAP COVER

1шт.

17

13420576

SNAP RING,M16, Int

1шт.

18

47128597

PLUG,6mm ID x 19mm OD x 13mm L

1шт.

19

14453180

O-RING,12.42mm ID x 1.78mm

1шт.

20

11057776

SNAP RING,M19, Int

1шт.
