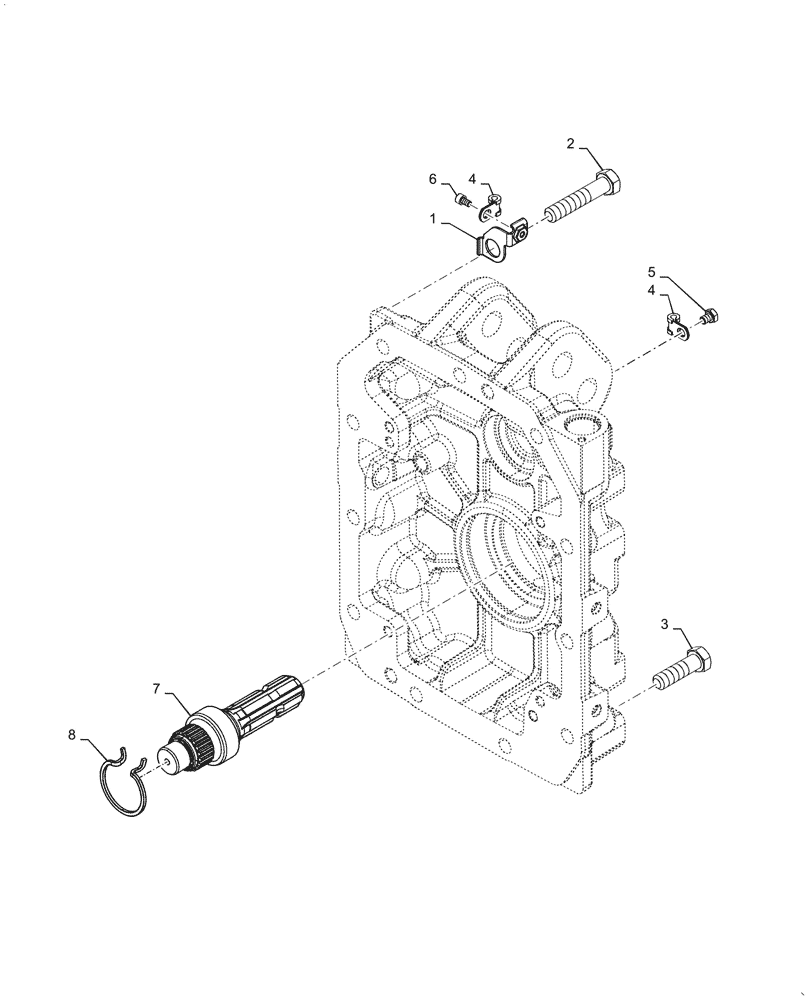

Запчасти Case IH PUMA1654 (31.116.AG[01]) - PTO, HOUSING, MOUNTING (31) - IMPLEMENT POWER TAKE OFF

1

47612128

BRACKET

1шт.

2

11254124

BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

4шт.

3

15981024

SCREW,Hex, M16 x 1.5 x 55mm, Cl 8.8

7шт.

4

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

Closed

2шт.

5

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

6

14305021

HEX SOC SCREW,M6 x 10mm, Cl 8.8, Full Thd

1шт.

7

47130743

PTO SHAFT,6T Splines, 182mm L

540 RPM

1шт.

8

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.
