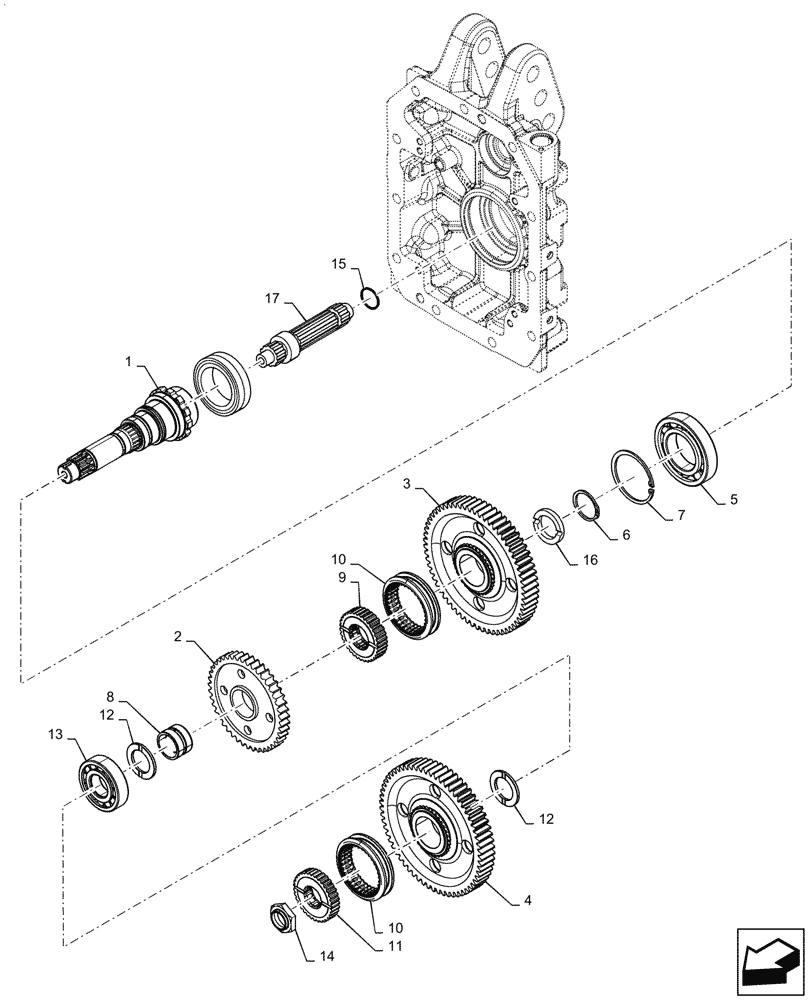

Запчасти Case IH PUMA1654 (31.116.AB[01]) - PTO, DRIVE SHAFT (31) - IMPLEMENT POWER TAKE OFF

1

47131255

DRIVE SHAFT,21T, 12T, 20T, 12T

For 540/750/1000 RPM PTO

1шт.

2

87678017

GEAR,Z63

PTO Driven 750 RPM

1шт.

3

87678018

GEAR

PTO Driven 1000 RPM

1шт.

4

87678016

GEAR,Z62

PTO Driven 540 RPM

1шт.

5

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

6

5143130

SNAP RING,M60, Ext x 4mm

Retaining

1шт.

7

11075976

SNAP RING,M120, Int

Seeger

1шт.

8

5192401

BUSHING,40mm ID x 48mm OD x 32mm L

PTO Driven Gear

2шт.

9

87578128

GEAR,21T Internal / 33T External

Fixed Sleeve PTO Control 540 - 750

1шт.

10

87578126

SLEEVE,Z12

Sliding PTO Control

2шт.

11

87578127

SLEEVE,Z12

Fixed PTO Control

1шт.

12

5192170

ANTI-WRAP PLATE

Spacer Driven Shaft

2шт.

13

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

1шт.

14

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

15

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

16

47131733

RING,65mm ID x 88mm OD x 6.7mm Thk

Retainer P.T.O

1шт.

17

47130744

PTO SHAFT,21T, 20T, 182mm L

1000 RPM

1шт.
