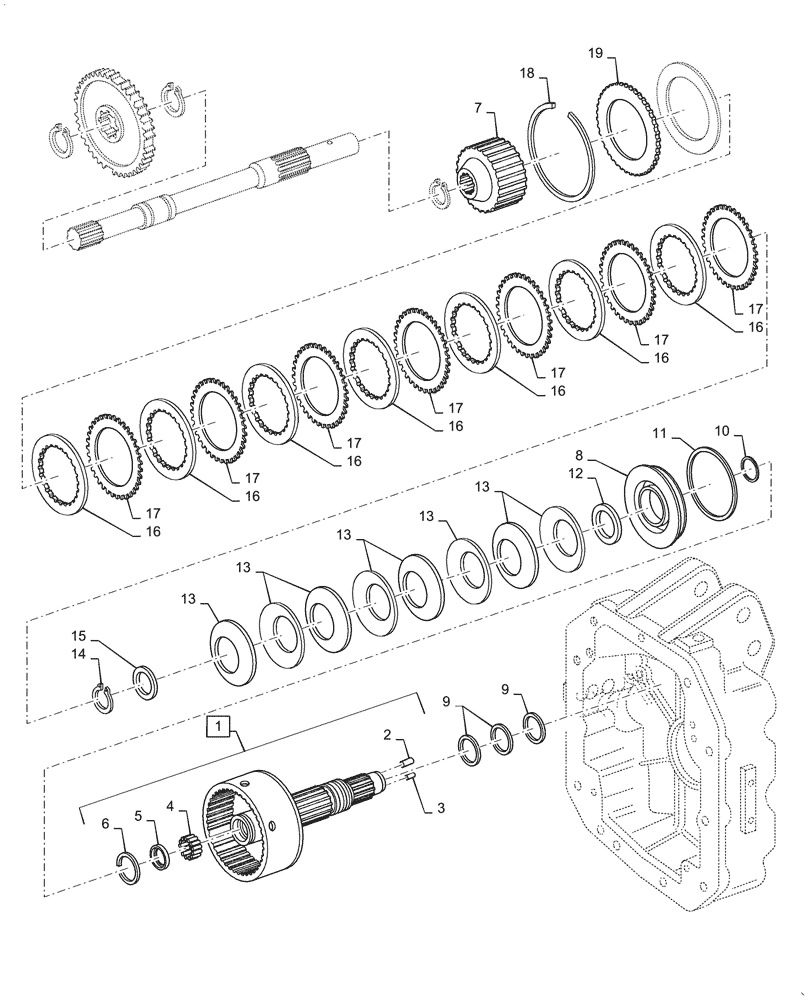

Запчасти Case IH PUMA1654 (31.110.AK[03]) - PTO CLUTCH, SHAFT CONTROL, CLUTCH PLATE (31) - IMPLEMENT POWER TAKE OFF

1

87374219

MAIN SHAFT,26T, 18T, 34T, 224.5mm L

Driving P.T.O. 3 Speed, Incl 2 - 6

1шт.

2

14536490

PLUG,8.00mm Dia x 15.70mm L

1шт.

3

14536590

PLUG,10.00mm Dia x 19.80mm L

Rivet

1шт.

4

5138952

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 26mm W

1шт.

5

5182702

GASKET,25mm ID x 33mm OD x 4mm Thk

1шт.

6

5182717

SNAP RING,1.5mm Thk

1шт.

7

87374253

HUB,Z32

Clutch Disc P.T.O.

1шт.

8

5198547

PISTON

Clutch P.T.O

1шт.

9

5175983

SEALING RING,46mm ID

3шт.

10

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

11

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

1шт.

12

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

13

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

8шт.

14

5191305

CIRCLIP,54mm ID

1шт.

15

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

16

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

7шт.

17

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

7шт.

18

5162251

CIRCLIP,142.5mm ID

1шт.

19

5198545

CLUTCH PLATE,89mm ID x 152.6mm OD x 7.5mm Thk

Disc

1шт.
