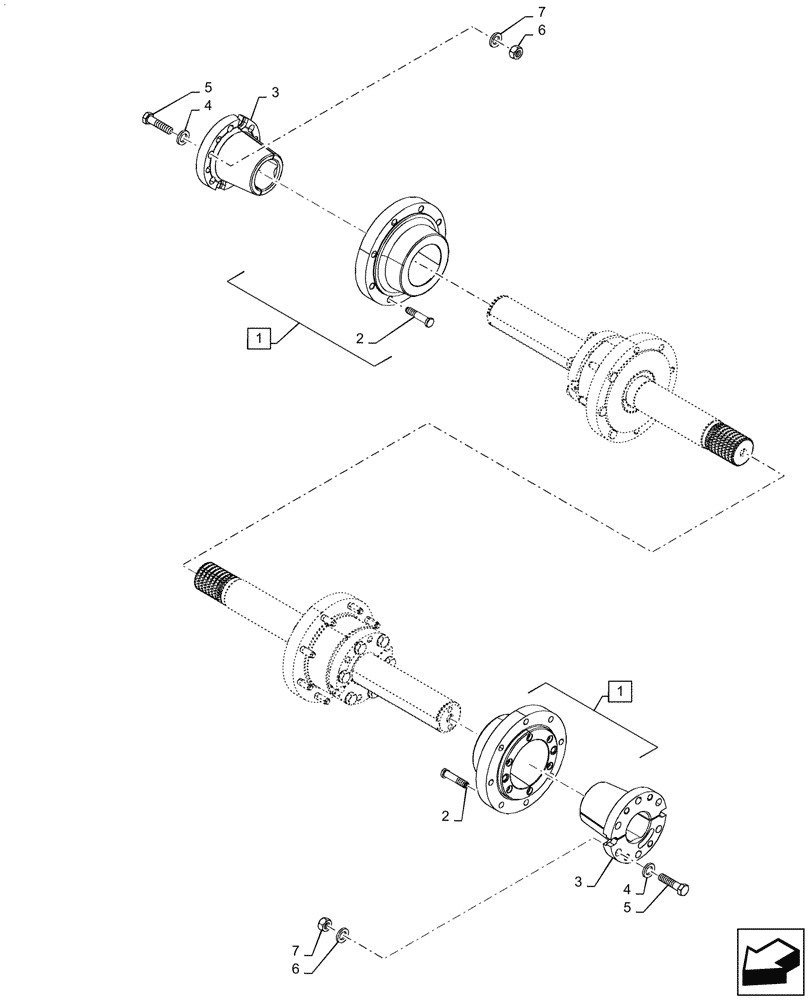

Запчасти Case IH PUMA1654 (27.120.AR[02]) - REAR AXLE, WHEEL HUB (27) - REAR AXLE SYSTEM

1

47728569

HUB

Driving Wheel with Screws, Incl 2

1шт.

2

87651027

STUD,M18 x 1.5 x 85mm, Cl 10.9

8шт.

3

47699301

HUB

1шт.

4

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

6шт.

5

11125424

SCREW,Hex, M20 x 85mm, Cl 8.8

6шт.

6

12164224

NUT,M18 x 1.5, Cl 10

16шт.

7

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

16шт.
