(27.120.AR[01]) - REAR AXLE, WHEEL HUB

Запчасти Case IH PUMA1654 (27.120.AR[01]) - REAR AXLE, WHEEL HUB (27) - REAR AXLE SYSTEM

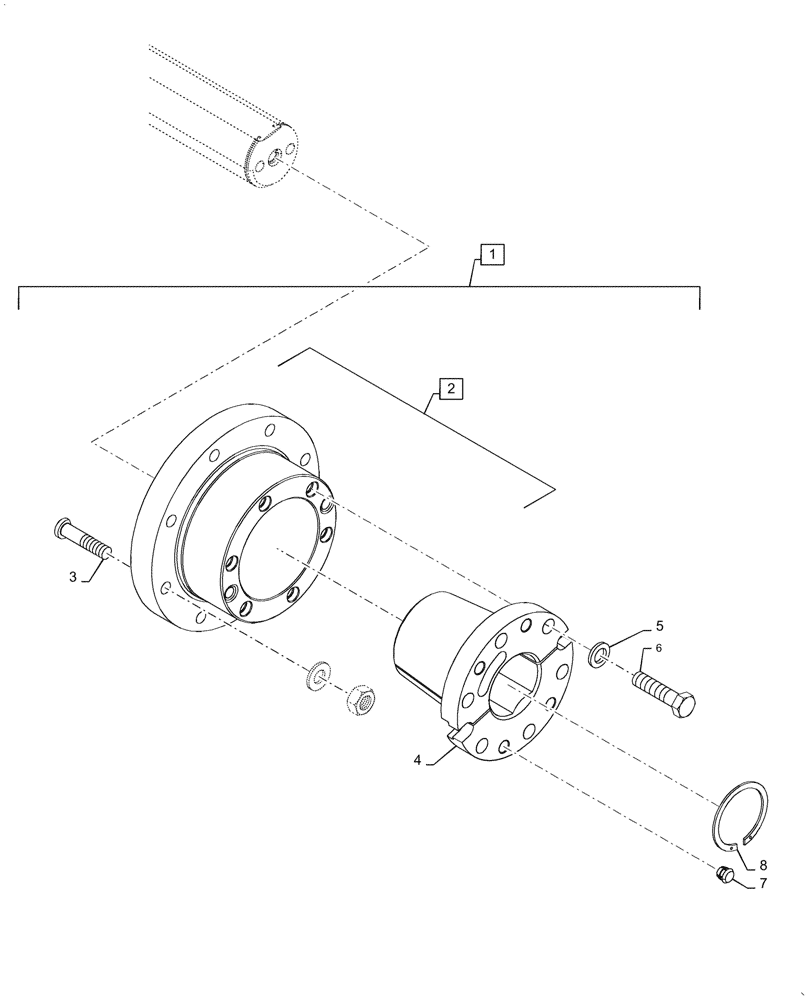

Схема запчастей Case IH PUMA1654 - (27.120.AR[01]) - REAR AXLE, WHEEL HUB (27) - REAR AXLE SYSTEM
6
1
3
2
8
4
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47728574

HUB

Driving Wheel with Conical Bush, Incl 2 - 6

2шт.

2

47728581

HUB

Driving Wheel with Screws, Incl 3

1шт.

3

87651027

STUD,M18 x 1.5 x 85mm, Cl 10.9

Wheel Hub

8шт.

4

47699301

HUB

Bushing

1шт.

5

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

6шт.

6

11125424

SCREW,Hex, M20 x 85mm, Cl 8.8

6шт.

7

81865567

PLUG,M18.5 Hole

Grommet Automatic Pickup

10шт.

8

11071374

CIRCLIP,3mm Thk

2шт.
