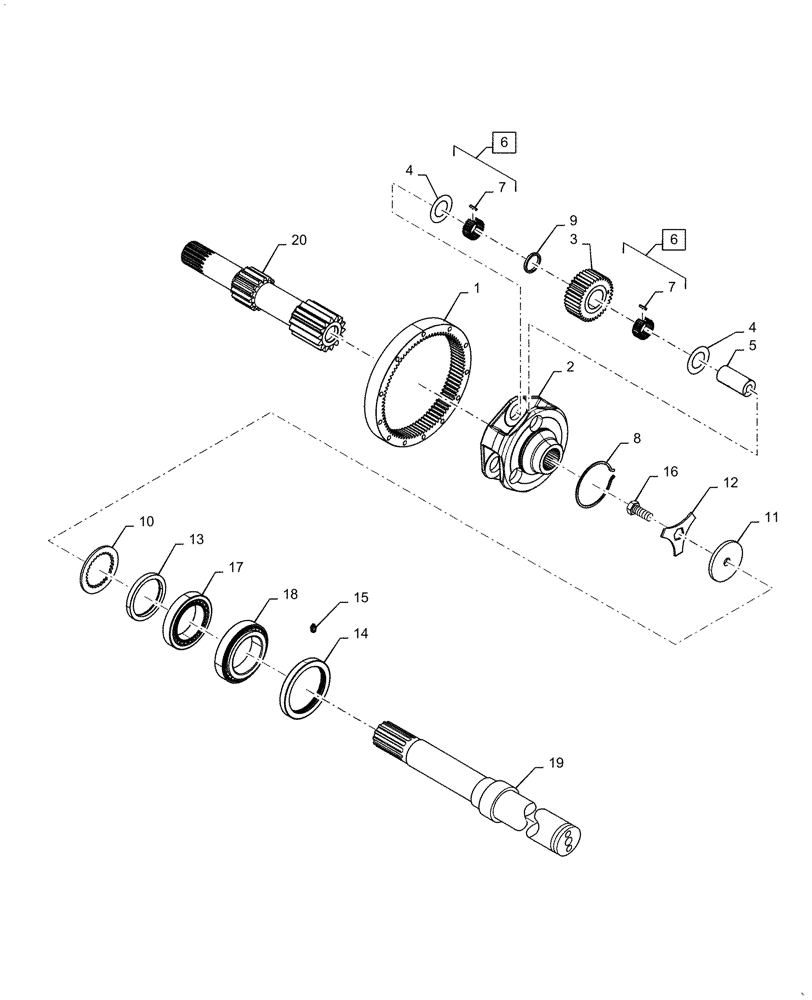

Запчасти Case IH PUMA1654 (27.120.AF[01]) - PLANETARY FINAL DRIVE (27) - REAR AXLE SYSTEM

1

5165495

RING GEAR,88T, 60mm L

Drive Final Internal

2шт.

2

87573468

PINION CARRIER

Planetary

2шт.

3

87573467

PLANETARY GEAR,36T

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

Spacer Planet Final Drivers

12шт.

5

5136130

PIN,62.4mm OD x 134mm L

Reducer Planet

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

Planet Gear, Incl 7

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

62шт.

8

5136132

CIRCLIP,4mm Thk

Ring Snap Planet Pin Retaining

2шт.

9

87573466

SPACER,64.5mm ID x 76.3mm OD x 9mm L

6шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

Driving Wheel Shaft

2шт.

11

5165501

DISC,18.5mm ID x 95mm OD x 8.5mm Thk

2шт.

12

47621155

PLATE

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

2шт.

14

5165506

SEAL,112mm ID x 140mm OD x 16mm Thk

Oil

2шт.

15

13407211

LUBE NIPPLE,M10 x 1

2шт.

16

47638419

BOLT,Hex, M18 x 1.50 x 50mm, Cl 10.9

2шт.

17

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

Roller

2шт.

18

24903700

ROLLER BEARING,90mm ID x 140mm OD x 32mm W

2шт.

19

87516454

WHEEL SHAFT

Axle

2шт.

20

5165497

CONTROL SHAFT,14T, 36T

Axle of Brake Plate and Reducer

1шт.

20

5165498

CONTROL SHAFT,14T, 36T

Axle of Brake Plate and Reducer

1шт.
