Запчасти Case IH PUMA1654 (27.100.AB[02]) - REAR AXLE HOUSING & COVERS (27) - REAR AXLE SYSTEM

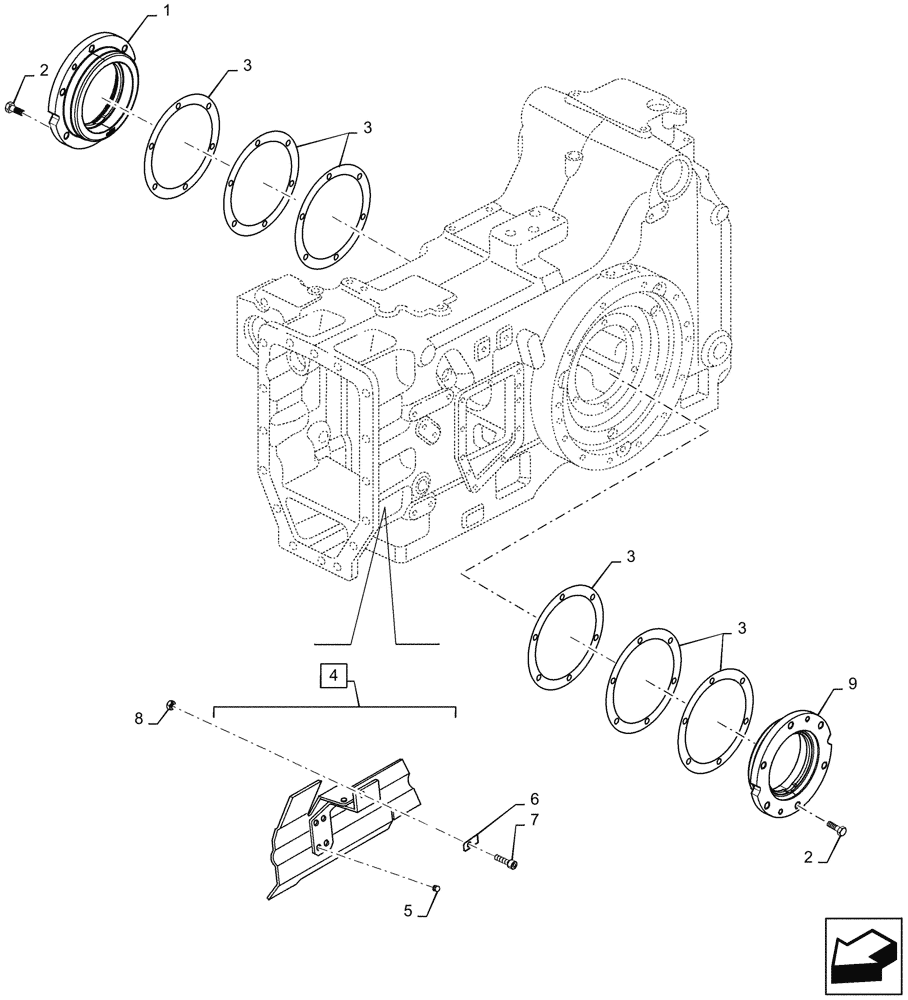

Схема запчастей Case IH PUMA1654 - (27.100.AB[02]) - REAR AXLE HOUSING & COVERS (27) - REAR AXLE SYSTEM
7
4
3
2
3
3
8
6
2
9
3
1
5

Артикул

Название

Примечание

Количество

1

5162538

SUPPORT

RH

1шт.

2

14233724

LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

12шт.

3

5152097

SHIM,168mm ID x 208mm OD x 0.15mm Thk

Differential Thick

1шт.

3

5152098

SHIM,168mm ID x 208mm OD x 0.2mm Thk

1шт.

3

5152099

SHIM,168mm ID x 208mm OD x 0.5mm Thk

1шт.

4

5155028

GUARD

Splash Complete, Incl 5

1шт.

5

10431400

SPARE PART

Rivet

6шт.

6

14198700

LOCKING PLATE,M8

1шт.

7

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

8

16100814

NUT,M8, Cl 8, DAC

1шт.

9

5162537

SUPPORT

LH

1шт.

Выбрано товаров: 11
