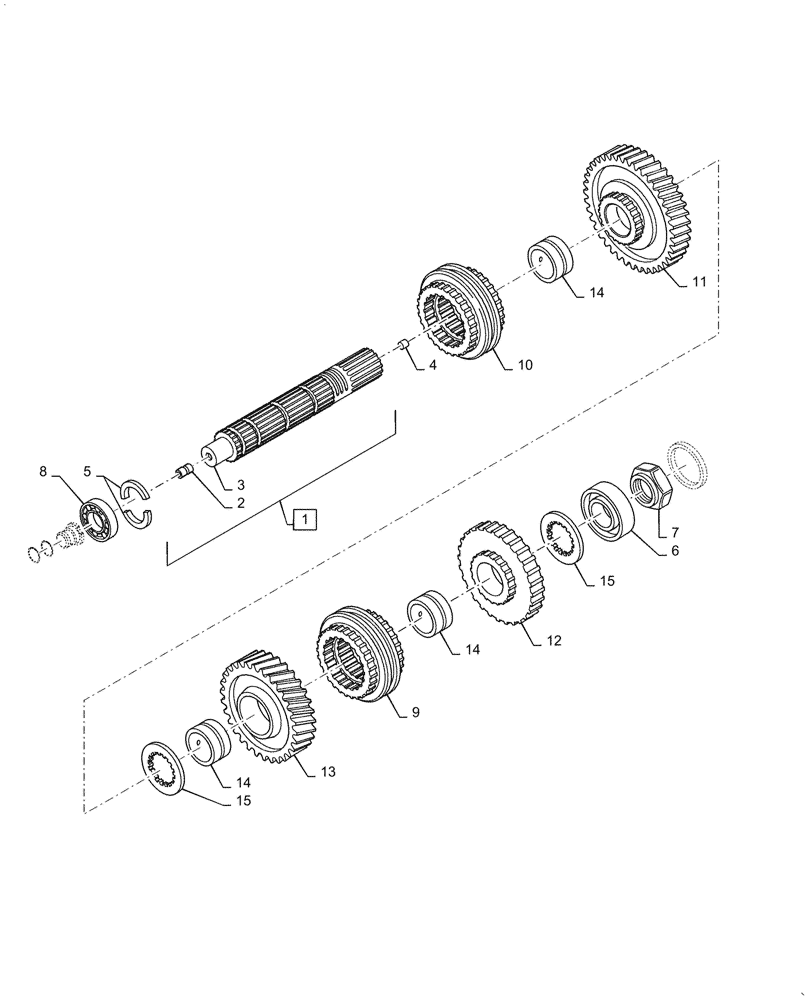

Запчасти Case IH PUMA1654 (21.155.AA[14]) - CENTRAL REDUCTION GEAR (21) - TRANSMISSION

1

5180851

AXLE

Shaft Driven Splitter Complete, Incl 2, 3

1шт.

2

5166038

PIPE

1шт.

3

5180850

MAIN SHAFT,20T, 24T

Driven Splitter

1шт.

4

5125566

DOWEL,M14 x 1.5 x 16mm

Pin

1шт.

5

5169085

RING,44mm ID x 56mm OD x 4mm Thk

For Driven Shaft Splitter

1шт.

6

5169086

ROLLER BEARING,47.5 mm ID x 100 mm OD x 27.25 mm

Tapered for Driven Shaft

1шт.

7

5169091

NUT,Hex Flg, M47.50 x 1.5mm Pitch, 17mm High, LH

1шт.

8

5180813

ROLLER BEARING,30mm ID x 27mm W

Cone Gearbox Driven Gears Shaft

1шт.

9

87537028

SYNCHRONIZER,24T, 50mm OD, 38T, 80mm OD

1шт.

10

87567127

SYNCHRONIZER,24T, 50mm OD, 38T, 80mm OD

1шт.

11

5164727

DRIVEN GEAR,38T, 55T

Low Speed Splitter

1шт.

12

5164729

DRIVEN GEAR,37T, 38T

Normal Speeds

1шт.

13

5165372

DRIVEN GEAR,37T, 38T

Reverse

1шт.

14

5164695

BUSHING,49.4mm ID x 60mm OD x 46.6mm L

Ring Inner of Reducer Driven Gears

3шт.

15

5149239

THRUST WASHER,46mm ID x 75mm OD x 5mm Thk

2шт.
