Запчасти Case IH PUMA1654 (21.152.AA[01]) - TRANSMISSION, CLUTCH (21) - TRANSMISSION

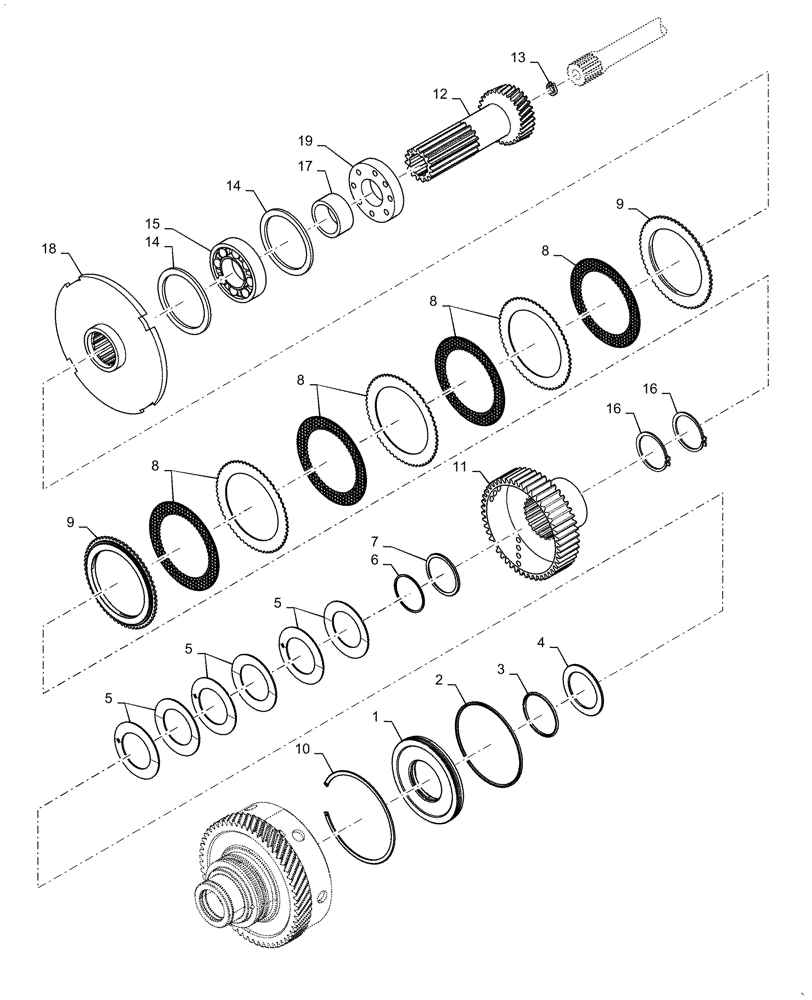

Схема запчастей Case IH PUMA1654 - (21.152.AA[01]) - TRANSMISSION, CLUTCH (21) - TRANSMISSION
12
10
3
8
13
16
8
14
5
14
18
11
8
16
7
1
15
9
5
5
8
4
9
17
19
2
6

Артикул

Название

Примечание

Количество

1

87547824

PISTON

1шт.

2

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

3

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

4

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

Piston

1шт.

5

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

Belleville

6шт.

6

5175981

CIRCLIP,1.5mm Thk

Ring Retaining External

1шт.

7

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

Snap Ring

1шт.

8

87596476

CLUTCH PACK

1шт.

9

5167824

DISC,113.5mm ID x 154.35mm OD x 7.5mm Thk

Clutch Reaction Plate Box

2шт.

10

47132979

CIRCLIP,2mm Thk

Ring Locking

1шт.

11

87586679

HUB

Clutch

1шт.

12

87588682

DRIVING GEAR,11T, 28T, 41T

Control Pumps 50 KM/H

1шт.

13

11058676

SNAP RING,M28, Int

Retaining

1шт.

14

11062176

CIRCLIP,M85, Int

2шт.

15

20972850

BALL BEARING,45 mm ID x 85 mm OD x 19 mm

1шт.

16

11069076

SNAP RING,M45, Ext

Circlip

2шт.

17

87398247

SPACER,45.1mm ID x 55mm OD x 24mm L

1шт.

18

87586677

SPLINED RING,28T, 172.5mm OD x 42mm ID

Wheel

1шт.

19

5150900

BEARING, ROLLER, CYL,45mm ID x 85mm OD x 19mm W

1шт.

Выбрано товаров: 19
