Запчасти Case IH PUMA1654 (21.140.AM[01]) - TRANSMISSION - REDUCTION UNIT CONTROLS - RODS AND FORKS (21) - TRANSMISSION

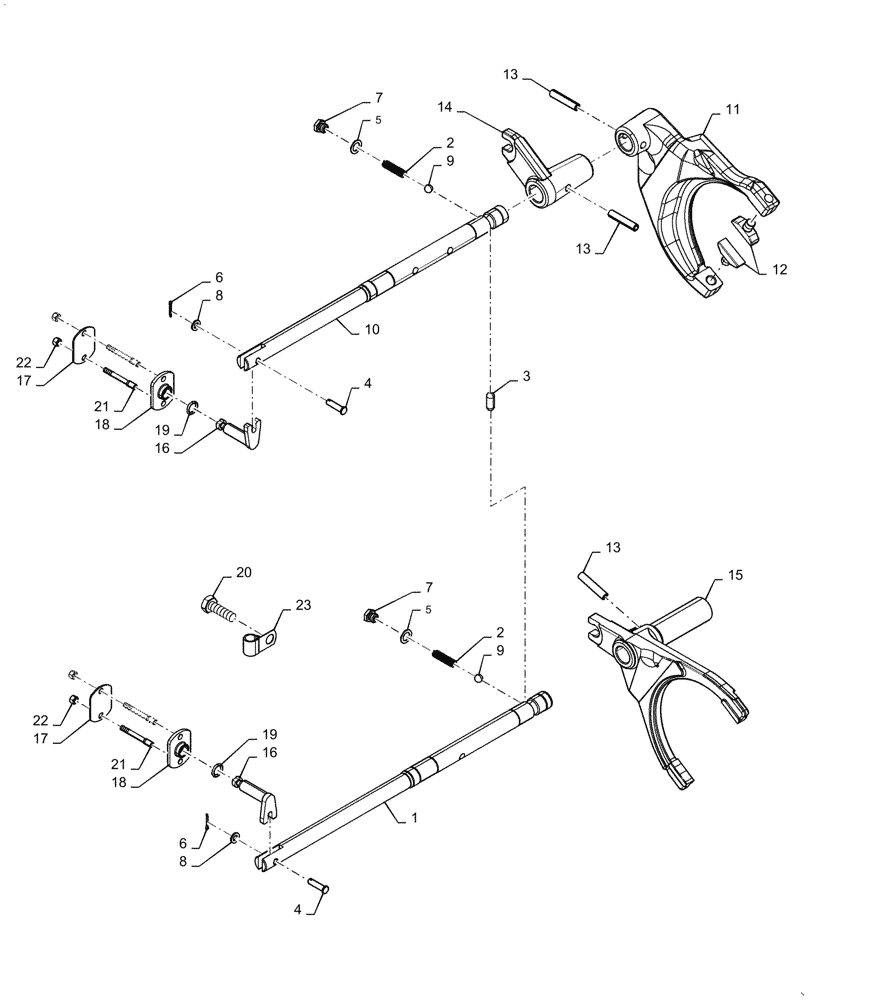

Схема запчастей Case IH PUMA1654 - (21.140.AM[01]) - TRANSMISSION - REDUCTION UNIT CONTROLS - RODS AND FORKS (21) - TRANSMISSION
15
22
12
21
17
6
2
16
14
10
8
18
21
23
19
9
7
13
5
1
11
16
7
6
19
8
18
2
20
4
5
13
22
9
13
3
17
4

Артикул

Название

Примечание

Количество

1

5164809

SHIFT RAIL,444mm L

Rod Shifter Average Fast Slow Speed

1шт.

2

4994342

SPRING,8mm OD x 30mm OAL

Compression

2шт.

3

5149882

PAWL,8.5mm D x 23mm L

1шт.

4

5178808

PIN,9mm OD x 25.5mm L

2шт.

5

10298360

SEALING WASHER,M10.2 x 16 x 1, Copper

2шт.

6

10734201

COTTER PIN,M2 x 12

2шт.

7

11903114

PLUG,M10 x 1.25 x 11

2шт.

8

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

9

20063390

BALL,8.73mm OD

2шт.

10

5164814

SHIFT RAIL,404mm L

Rod Shifter Fast And Reverse Speeds

1шт.

11

5180050

SHIFTER FORK,162.15mm Int

Controlling Average and Reverse S

1шт.

12

5152539

SLIDING PAD

Block

2шт.

13

14607270

LOCK PIN,M8 x 40, Slotted

3шт.

14

5180052

GEARSHIFT

Controller Medium And Reverse

1шт.

15

5180055

SHIFTER FORK,148mm Int

Complete Controlling Fast Slow SP

1шт.

16

5178335

SHAFT,12mm OD x 48.5mm L

2шт.

17

5178336

PLATE

2шт.

18

5178541

PLATE

2шт.

19

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

20

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

8шт.

21

82014252

STUD,M5

Transmission Synchro Sensor

4шт.

22

14048611

NUT,M5 x .8, Cl 8

4шт.

23

83976853

CLIP,12.7mm, Coat, 11.5mm Bolt Hole, J Type

Clamp

1шт.

Выбрано товаров: 23
