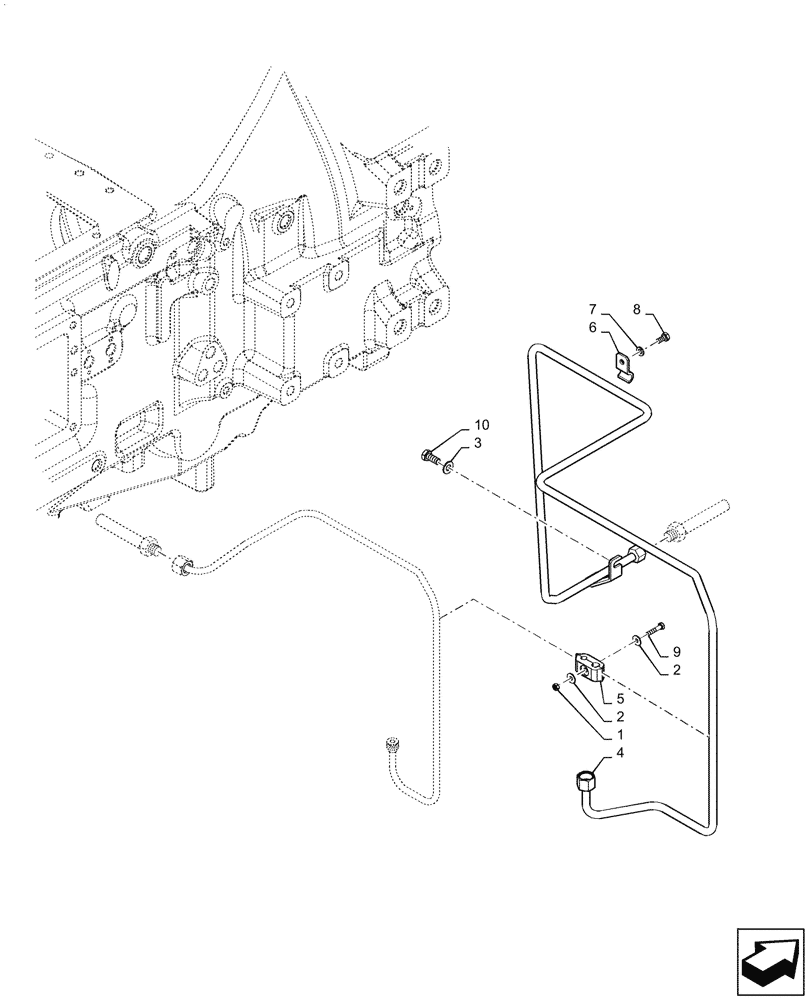

Запчасти Case IH PUMA1654 (21.135.AQ[06]) - LOW PRESSURE PIPES, RELATED PARTS (21) - TRANSMISSION

1

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

1шт.

2

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

84526536

PIPE

Front Differential Lock

1шт.

5

84545054

BRACKET

Fixing Pipes

1шт.

6

84332672

BRACKET

1шт.

7

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

8

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

9

10978231

BOLT,Hex, M5 x 25mm, Cl 10.9, Full Thd

1шт.

10

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.
