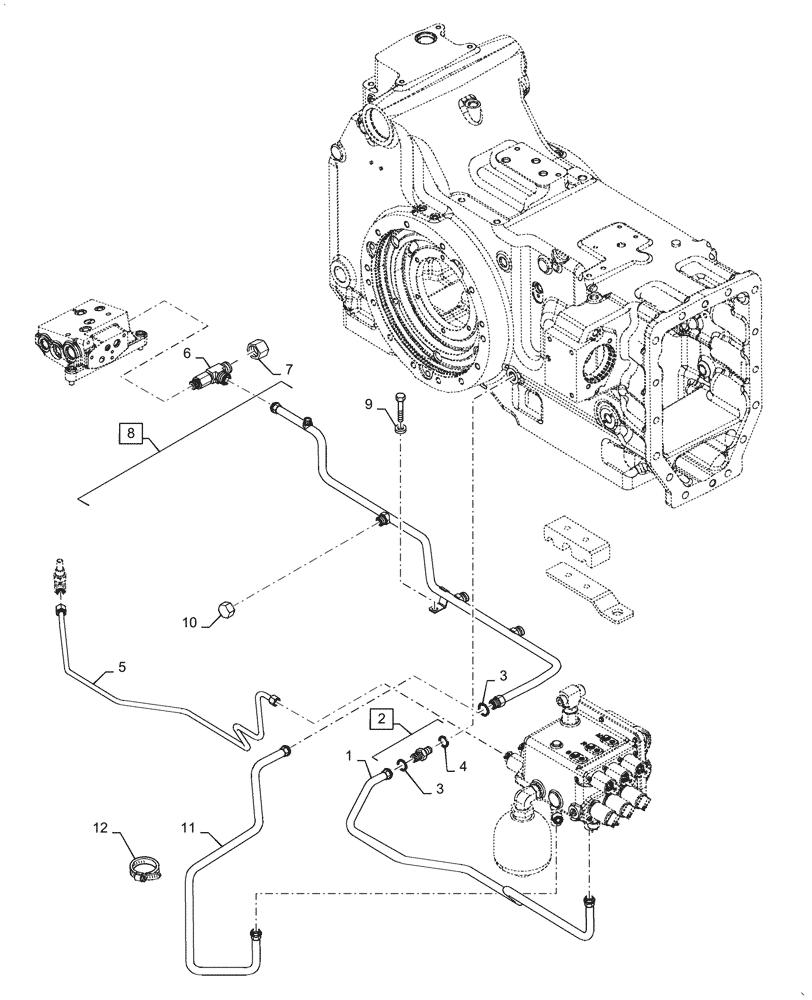

Запчасти Case IH PUMA1654 (21.135.AQ[04]) - LOW PRESSURE PIPES, RELATED PARTS (21) - TRANSMISSION

1

87519204

PIPE

4WD Clutch Supply Pipe

1шт.

2

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

Incl 3, 4

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

5

87519206

PIPE

Rear Differential Lock

1шт.

6

87571078

HYD CONNECTOR,1"-14 x 1"-14 x M18 x 1.5

Elbow

1шт.

7

83987627

CAP,1-14UN-2A

1шт.

8

87660983

PIPE

Rear from PC Port to Valve, Incl 3

1шт.

9

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

10

5189973

PLUG

1шт.

11

87687002

PIPE

Front from PC Port to Valve

1шт.

12

13001690

HOSE CLAMP,Worm Gear, 30mm/45mm x 9mm W, CST, ZND

1шт.
