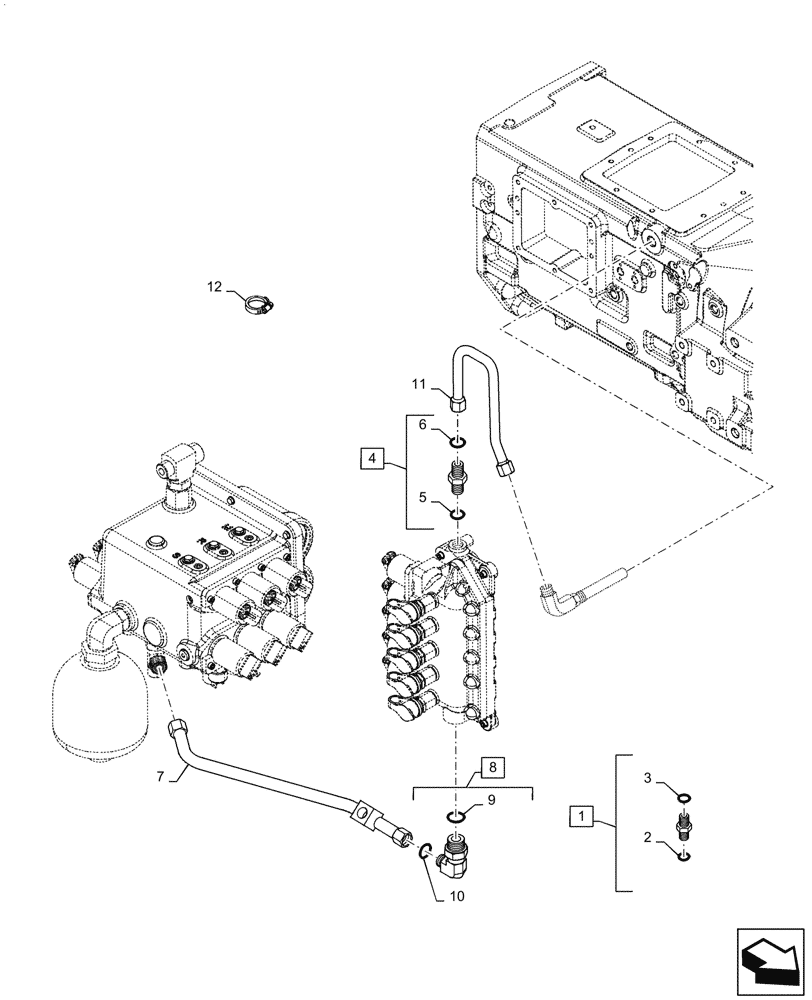

Запчасти Case IH PUMA1654 (21.135.AQ[03]) - LOW PRESSURE PIPES, RELATED PARTS (21) - TRANSMISSION

1

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

Incl 2, 3

1шт.

2

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl 5, 6

1шт.

5

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

87687004

PIPE

Power Shift

1шт.

8

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

Incl 9, 10

1шт.

9

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

11

87671394

PIPE

For Clutch A Power Shift

1шт.

12

13000290

HOSE CLAMP,12mm - 18mm, Worm Gear

Worm Gear

1шт.
