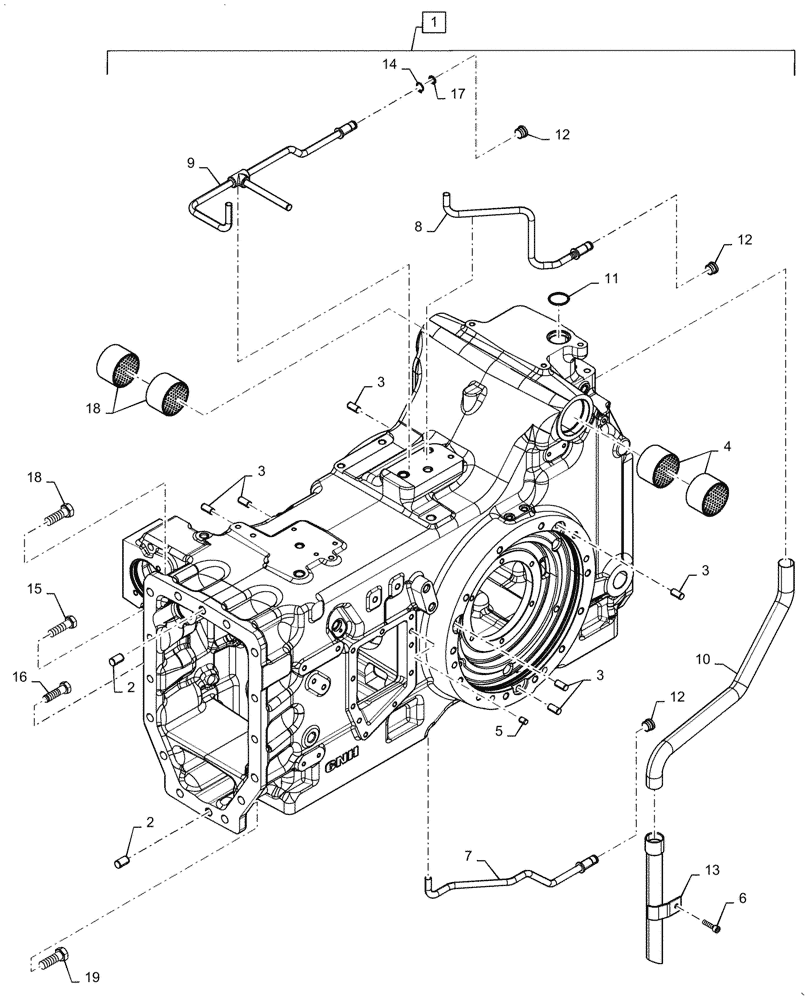

Запчасти Case IH PUMA1654 (21.118.AF[02]) - TRANSMISSION HOUSING, POWERSHIFT (21) - TRANSMISSION

1

84312159

HOUSING

Transmissiog, Incl 2 - 12

1шт.

2

4985062

DOWEL,15mm OD x 25mm L

Pin Clutch Housing Axle Casing

4шт.

3

5110200

DOWEL,12mm OD x 25mm L

Pin

10шт.

4

5180491

BUSHING,65.1mm ID x 70.03mm OD x 45mm L

RH Rockshaft

4шт.

5

10839710

DOWEL,M10 x 15.00mm

Pin Parallel

2шт.

6

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

7

87386528

HYD TUBE,378, 72.5 mm L

PTO Clutch Complete

1шт.

8

87386535

HYD TUBE,248, 131 mm L

Pipe Brake PTO Complete

1шт.

9

87386537

HYD TUBE,423, 112 mm L

Assembly Lubrificate PTO

1шт.

10

87374620

HYD TUBE,413.7, 303.75 mm L

Complete Pipe

1шт.

11

13398776

SNAP RING,M35, Int

1шт.

12

5186628

BUSHING,16mm ID x 22mm OD x 14mm L

3шт.

13

87376006

HYD TUBE,295 mm L

Complete Pipe

1шт.

14

11066476

SNAP RING,M16, Ext

4шт.

15

15860134

BOLT,Hex, M14 x 1.5 x 50mm, Cl 10.9

3шт.

16

84525187

SCREW,M14 x 50mm

1шт.

17

14453180

O-RING,12.42mm ID x 1.78mm

4шт.

18

15840534

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

7шт.

19

84525340

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9

1шт.
