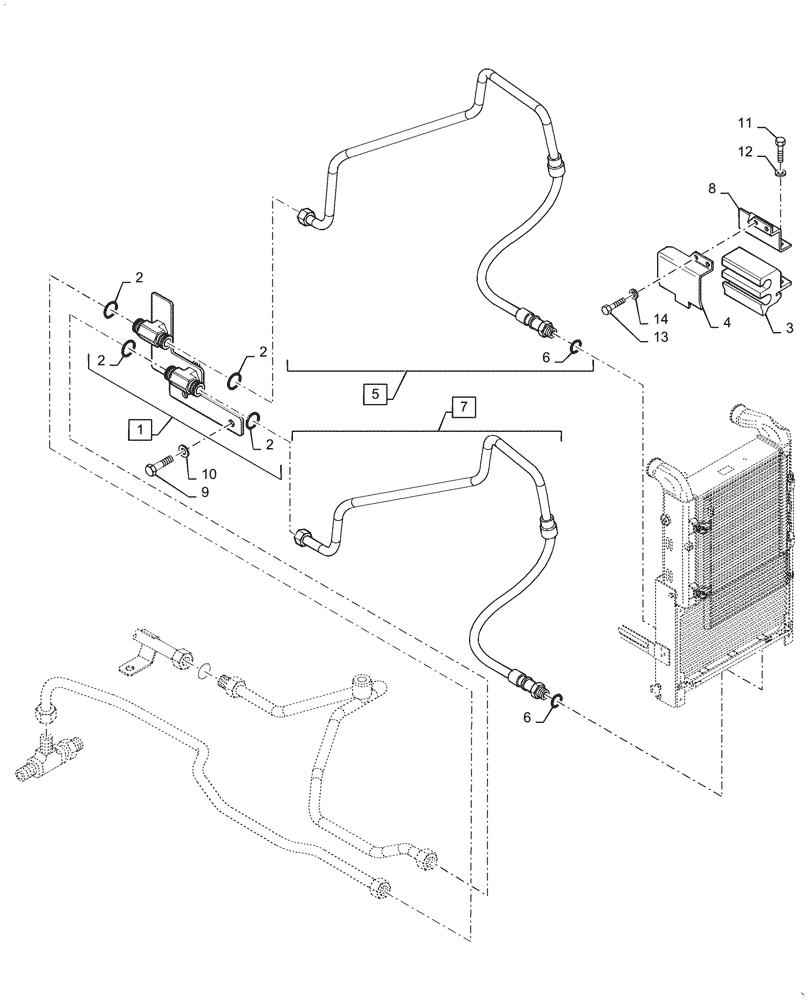

Запчасти Case IH PUMA1654 (21.109.AD[02]) - TRANSMISSION OIL COOLER - PIPES (21) - TRANSMISSION

1

84136405

HOLDER

Bracket Assy Transmission Oil Cooler, Incl 2

1шт.

2

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

3

84121136

SUPPORT

Assy Transmission Oil Cooler

1шт.

4

87484736

COVER

Transmission Oil Cooler

1шт.

5

84121137

HYD TUBE,18 mm OD, 835.6, 740 mm Length

Assy Transmission Oil Cooler, Incl 6

1шт.

6

47469813

O-RING

1шт.

7

84121138

HYD TUBE,18 mm OD, 920, 75 mm Length

Assy Transmission Oil Cooler, Incl 6

1шт.

8

87579221

PLATE

Rear Transmission Oil Cooler Tubes

1шт.

9

11112421

SCREW,Hex, M12 x 30mm, Cl 8.8

3шт.

10

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

11

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

13

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

14

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.
