Запчасти Case IH PUMA 2304 (10.400.BF[03]) - RADIATOR DUCT, SEAL (10) - ENGINE

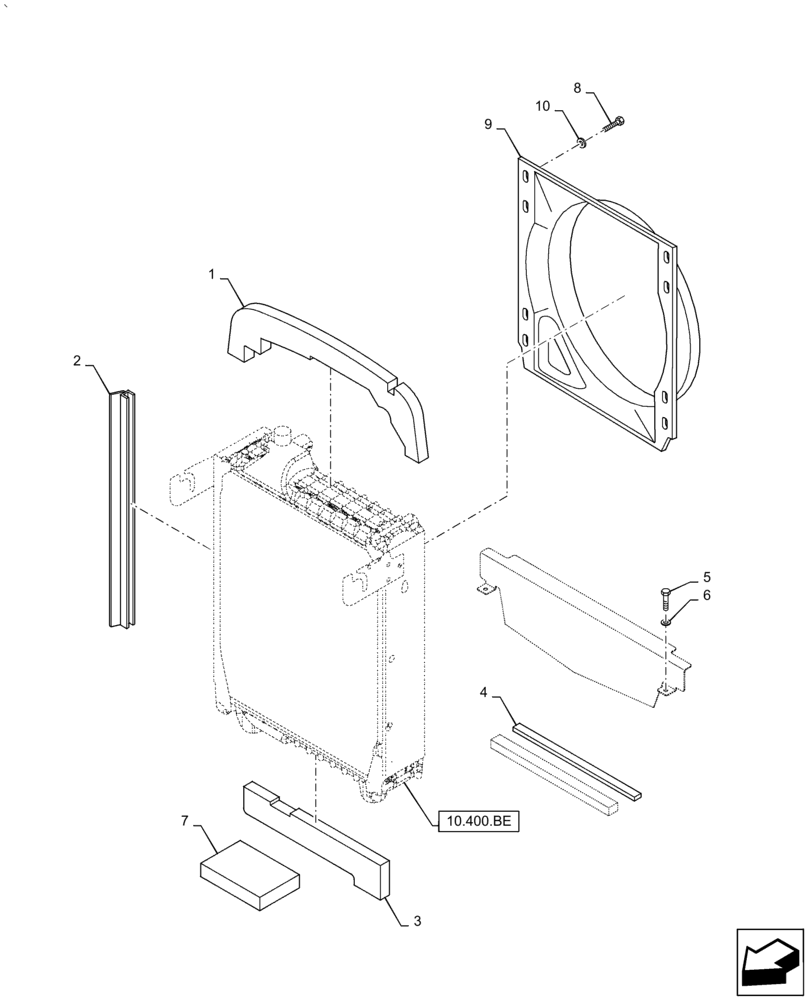

Схема запчастей Case IH PUMA 2304 - (10.400.BF[03]) - RADIATOR DUCT, SEAL (10) - ENGINE
9
3
6
10
10.400.be
2
8
1
4
5
7

Артикул

Название

Примечание

Количество

1

47385560

SEAL

Case Hood to Air Duct

1шт.

2

82039110

SEAL

Hood to Radiator Side

2шт.

3

87380756

FOAM INSULATION

Radiator Side to Hood, Serial Range: Side-Hood

2шт.

4

82038264

SEAL,510mm x 15mm x 5mm

Radiator to Baffle Plate

1шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

7

82030145

FOAM INSULATION

Radiator Air Side

2шт.

8

87377778

SCREW,Hex, M6 x 16mm, Cl 8.8

8шт.

9

87565399

SHROUD

1шт.

10

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

Выбрано товаров: 10
